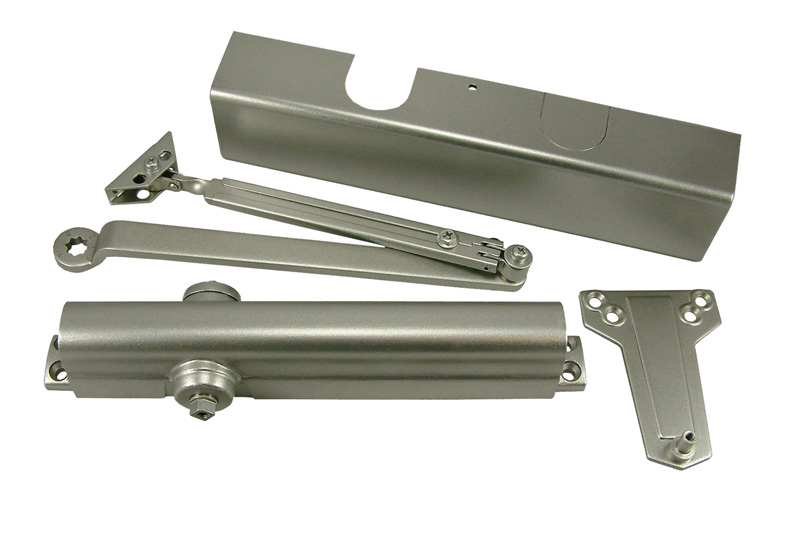

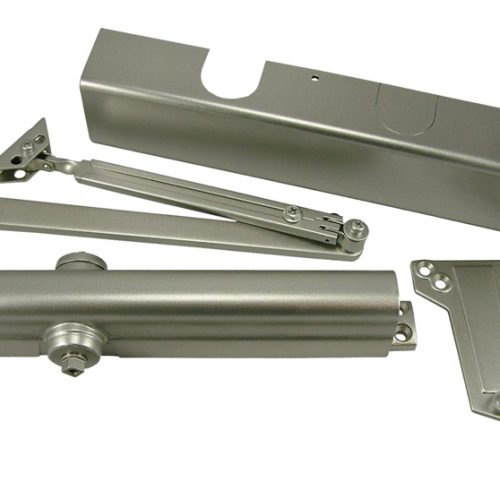

316 Series Heavy Duty Commercial Aluminum Door Closer

2830

$0.00

Warranty:
Limited lifetime warranty

Material:
Aluminum

Specsheet 2

Meets ANSI A156.4 – Grade 1 Standards
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Meets ADA requirements ANSI A117.1
Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Const.
Heat Treated Heavy Duty Steel Piston, Spindle & Spring
Adjustable Spring Power from Size 1 to 4 – Preset at size 3
Independent Latch & Sweep Speed Controls
Back Check Intensity Control Standard
Staked Valves to prevent backing valves out too far
Molded Plastic Cover included – Metal cover included with US3 & US26 finish
12″ CTC Horizontally x 3/4″ CTC Vertically
Slim 2 1/8″ projection with cover installed
Regular: 3 1/2″ – Top Jamb: 2 1/4″ – Parallel Arm: 5 1/4″
Thru bolts with machine screws, Wood screws
& Self tapping machine screws included
Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations
Hold Open Arms, Heavy Duty Arms, Drop Plates, Extended Arms & more…
Limited Lifetime Warranty
