Carton of (100) 1-7/16 in. x 2-3/4 in. Triple Zinc 18 Ga. Steel Framing Angle

A3-TZ Framing Angles – Triple Zinc (Carton of 100)

The A3-TZ Framing Angles by USP are a dependable solution for connecting headers and joists with increased strength and precision. Designed to eliminate the need for toenailing, these angles simplify installation while enhancing structural integrity.

Key Features:

• Improved Connection: Eliminates toenailing, providing a cleaner and stronger joint.
• Heavy-Duty Build: Made from 18-gauge steel for reliable performance and stability.
• Corrosion Resistance: Finished with Triple Zinc (G90 galvanizing) to protect against rust and wear.

Specifications:

• Material: 18-gauge steel

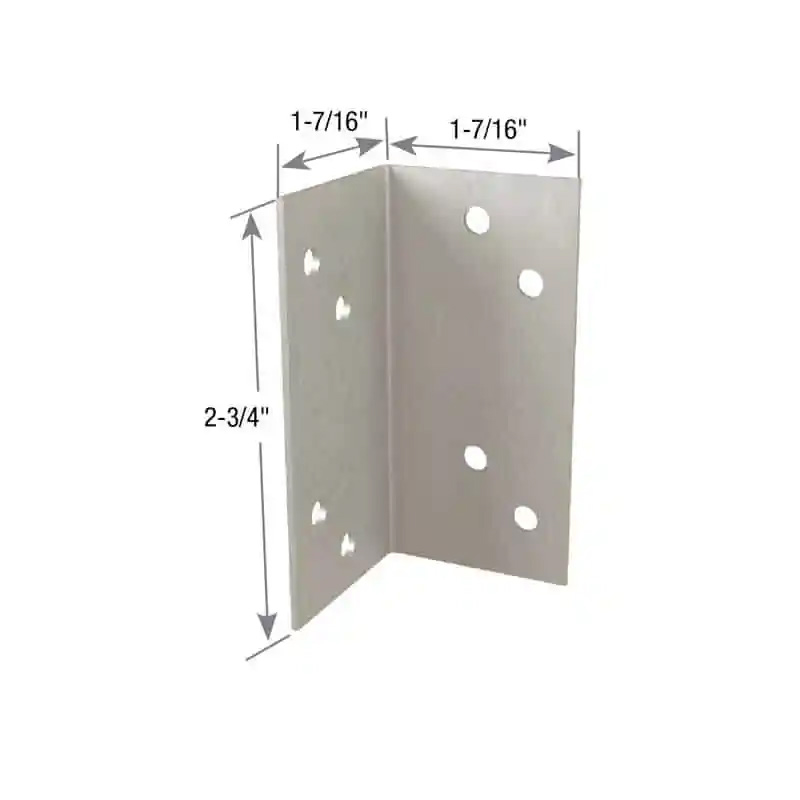

• Dimensions: 1-7/16″ W x 2-3/4″ L
• Fastening Schedule:
  • (4) 10d x 1-1/2″ nails to header
  • (4) 10d x 1-1/2″ nails to joist

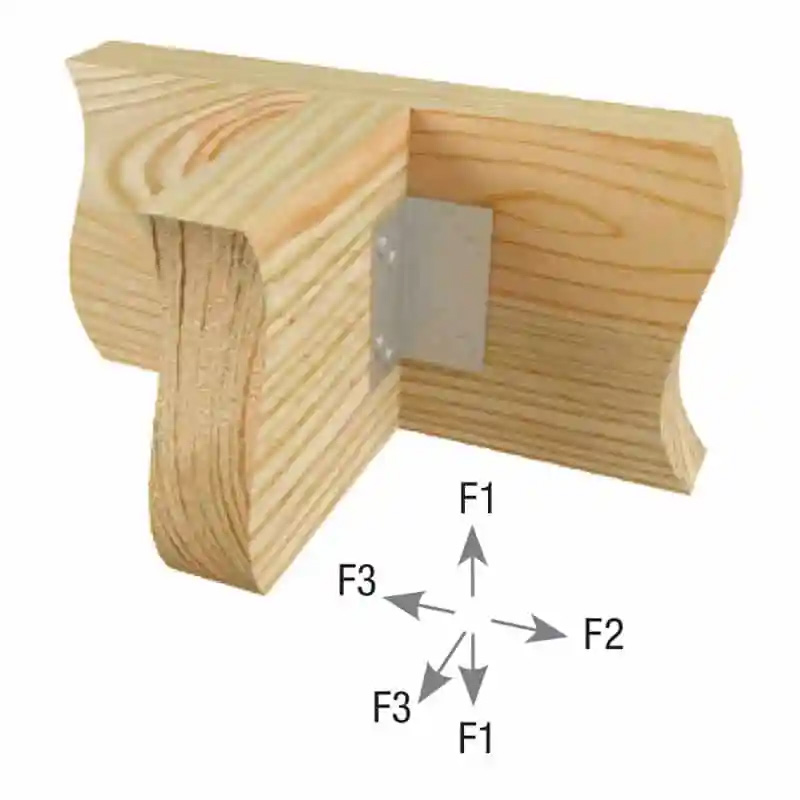

• Allowable Load: 450 DF-L / SP

Each carton includes 100 A3-TZ Framing Angles (USP #A23). Sign in to view pricing and place your order today.

Designed for efficiency and durability, the A3-TZ framing angle ensures stronger, more secure connections in any framing project.
