Carton of (100) 18 Ga. Steel Reversbile Truss & Rafter Anchors

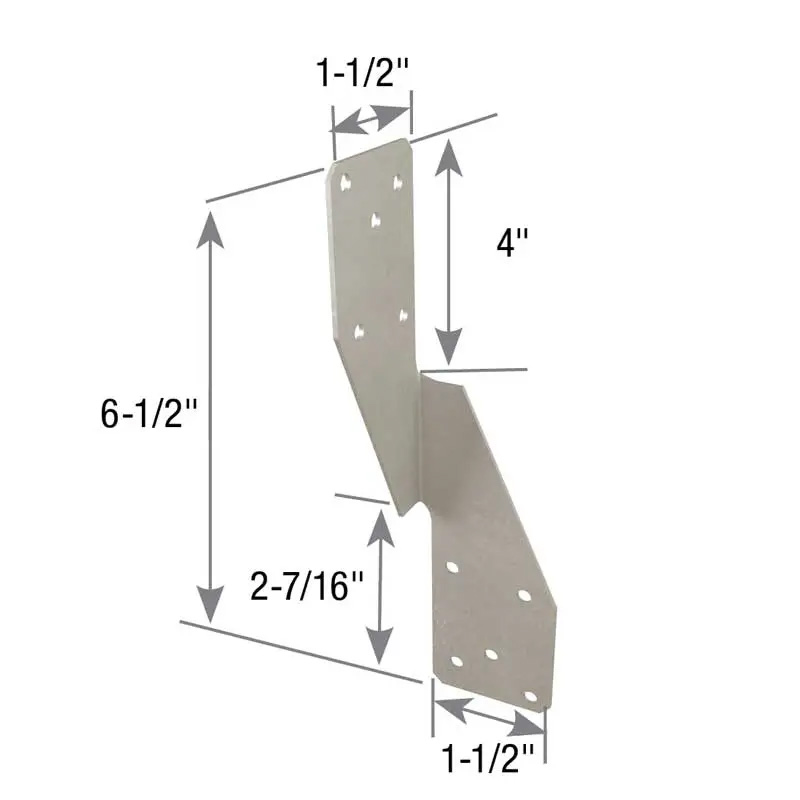

RT7A Truss/Rafter Anchor (Carton of 100)

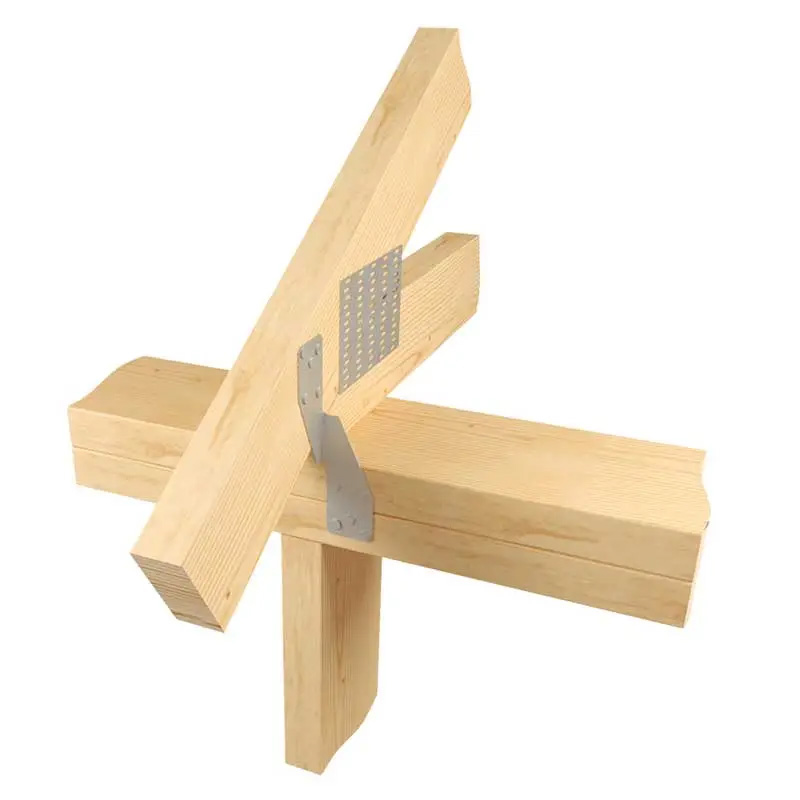

Manufactured by USP, the RT7A Truss/Rafter Anchor is a high-performance, reversible solution for tying trusses and rafters securely to top plates. Designed to resist uplift and lateral forces, this anchor delivers superior stability for wood framing applications.

Key Features:

• Manufacturer: USP – known for reliable construction hardware.
• Material: Crafted from durable 18-gauge steel.
• Design: Reversible configuration for versatile use.
• Performance: Meets industry standards with 210 DF-L/SP Lateral capacity at 160% efficiency.

Installation Details:

• Fastener Schedule:
  • (5) 8d nails for the truss/rafter connection.
  • (5) 8d nails for the plate connection.
• Birdsmouth notching may be required on some pitches to ensure full use of nail holes and maximum load capacity.

Benefits:

• Reliable resistance against uplift and lateral forces.
• Ideal for trusses, rafters, and other critical wood framing connections.

Available in cartons of 100, the RT7A Truss/Rafter Anchor from USP is the perfect choice for builders and contractors requiring top-tier performance and durability in bulk quantities.
