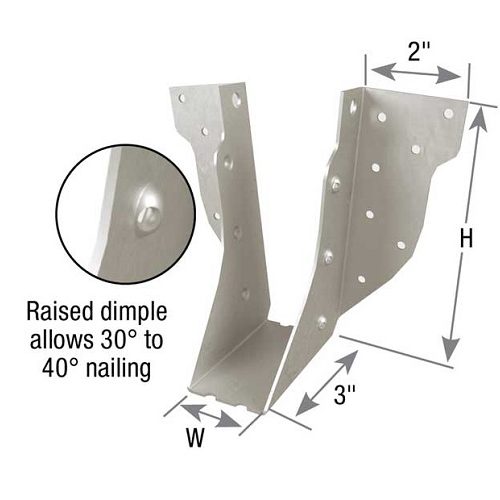

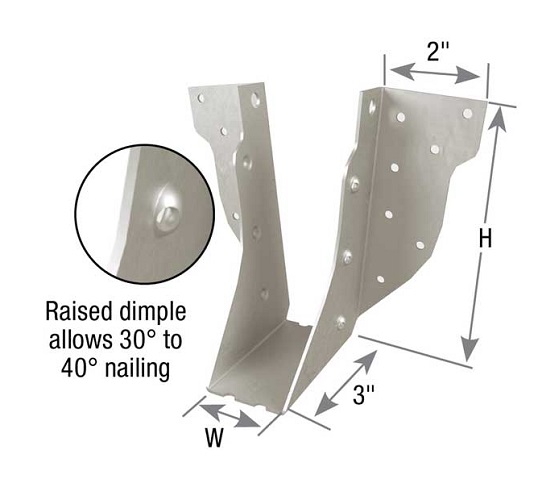

Carton of (25) 1-13/16 in. x 9-1/8 in. x 3 in. HUS179 Face Mount Hangers

The HUS179 Face Mount Hangers are engineered for medium load applications, providing strong and reliable support for structural connections. Designed with a 3″ deep seat, these hangers offer enhanced truss bearing, ensuring stability and durability in various framing and construction projects.

Constructed from 16-gauge steel with a G90 galvanized finish, the HUS179 hangers provide excellent corrosion resistance and long-lasting performance, making them ideal for both interior and exterior use. The hangers are designed to accommodate a 1-3/4″ x 9-1/2″ joist size, offering a precise and secure fit for beams and trusses.

Key Features:

• Medium Load Capacity: Engineered for structural applications requiring moderate load support.
• Extended 3″ Deep Seat: Provides increased truss bearing for enhanced stability and strength.
• Precise Fit for Joists: Designed for 1-3/4″ x 9-1/2″ joists, ensuring secure and accurate installation.
• 16-Gauge Steel Construction: Offers durability and strength for a wide range of framing and structural needs.
• G90 Galvanized Finish: Corrosion-resistant coating makes it suitable for both indoor and outdoor use.
• Face Mount Design: Simplifies installation while ensuring a solid, long-lasting connection between beams and trusses.

Specifications:

• Model Number: HUS179
• Material: 16-Gauge Steel
• Finish: G90 Galvanizing
• Joist Size: 1-3/4″ x 9-1/2″
• Dimensions:
  • Width: 1-13/16 inches
  • Height: 9-1/8 inches
  • Depth: 3 inches
• Quantity: Carton of 25 face mount hangers
• Application: Truss and joist support in residential, commercial, and industrial framing projects

The HUS179 Face Mount Hangers deliver strong, stable, and code-compliant support for trusses and joists in medium load applications. Their durable construction, enhanced truss bearing capacity, and corrosion-resistant finish make them an excellent choice for decks, floors, roofing systems, and other structural framing projects.
