Carton of (25) 5-1/8 in. x 11-7/8 in. x 3 in. THO25118-2 Top Mount Hangers

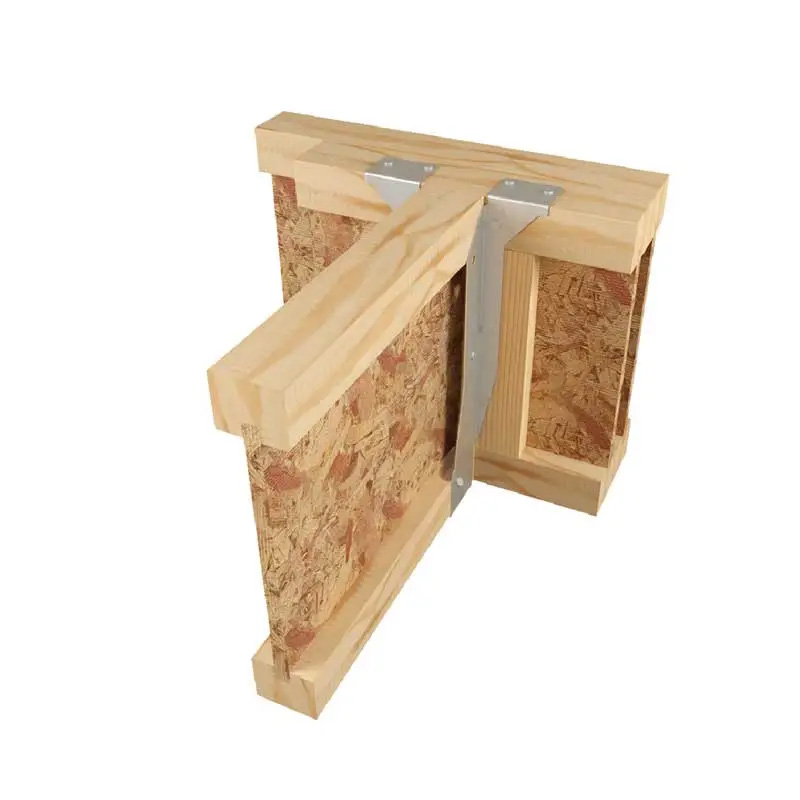

The THO25118-2 Top Mount Hangers are designed for I-Joist to header applications, delivering superior strength, stability, and ease of installation. Engineered to offer full lateral support to the I-Joist top chord, these hangers eliminate the need for web stiffeners in most applications, streamlining construction while maintaining structural integrity.

A key feature is the patented Seat Cleat®, which securely holds the I-Joist in place during installation, preventing spring back and ensuring precise nailing into the bottom flange. Raised dimple nailing guides make it easy to achieve accurate 45-degree nailing into the I-Joist bottom flange, enhancing load capacity and connection strength.

Constructed from durable 18-gauge steel with a corrosion-resistant G90 galvanized finish, the THO25118-2 hangers are built to withstand demanding environments and ensure long-lasting performance.

Key Features:

• Optimized for I-Joist to Header Applications: Provides secure support for wide I-Joists, ensuring stable and reliable framing connections.
• Full Lateral Support: Eliminates the need for web stiffeners in most installations, reducing material and labor costs.
• Patented Seat Cleat®: Holds the I-Joist firmly in place, eliminating spring back and simplifying the nailing process.
• Raised Dimple Nailing Guides: Ensures precise 45-degree nailing into the I-Joist bottom flange for maximum connection strength.
• Heavy-Duty 18-Gauge Steel: Provides exceptional load-bearing capacity and durability for structural framing.
• G90 Galvanized Finish: Protects against corrosion, making it suitable for both indoor and outdoor applications.
• Wider Joist Accommodation: Supports 5″ x 11-7/8″ I-Joists, perfect for larger framing projects.

Specifications:

• Model Number: THO25118-2
• Material: 18-Gauge Steel
• Finish: G90 Galvanizing
• Joist Size: 5″ x 11-7/8″
• Dimensions:
  • Width: 5-1/8 inches
  • Height: 11-7/8 inches
  • Depth: 3 inches

Fastener Schedule:

• Top Fasteners: 4 x 16d Nails (Header)
• Face Fasteners: 6 x 10d Nails (Joist)

Packaging:

• Quantity: Carton of 25 Hangers

The THO25118-2 Top Mount Hangers offer an efficient, code-compliant, and durable solution for I-Joist framing connections, particularly in projects requiring wider joist support. With its patented Seat Cleat®, full lateral support, and robust construction, this hanger is the ideal choice for builders and contractors seeking strength, stability, and ease of installation.
