Carton of (40) ADTT-TZ Adjustable Deck Tension Ties

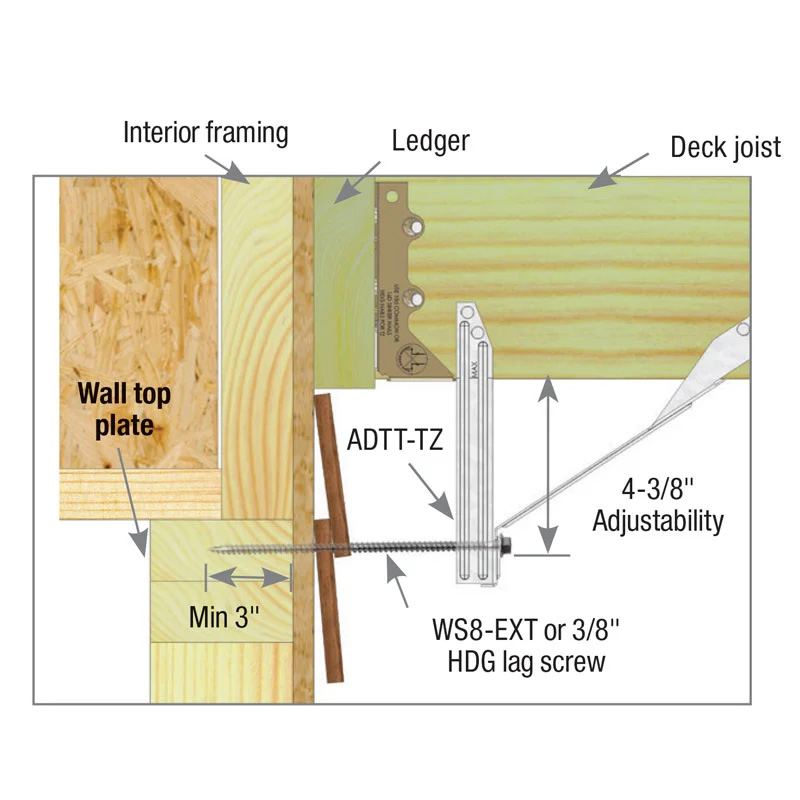

Deck collapses are often caused by failure of the connection where the deck is attached to the main structure due to little or no lateral capacity. ADTT-TZ is an Adjustable Deck Tension Tie designed to effectively transfer the out of plane lateral loads of the deck to the house structure.

• 14 Steel Gauge
• Features:
  • Exceeds “Hold-Down Device” requirements per 2015 IRC, Section 507.2.4

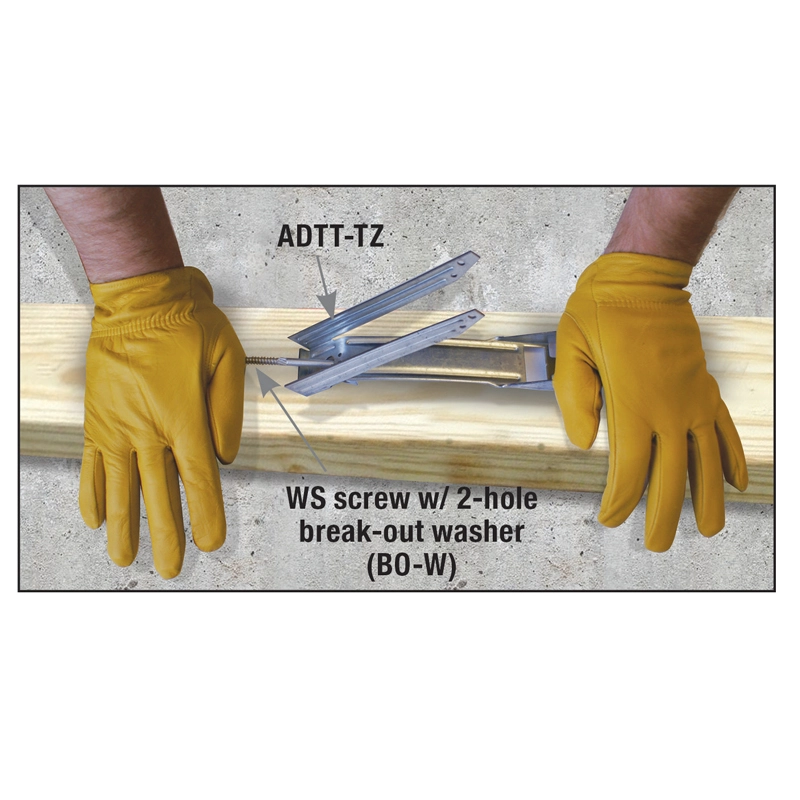

  • Adjustable design allows lag screw installation at variable distance below deck joist.
  • 2-hole break-out washer (BO-W) will work with multiple screw sizes.
  • Blocking extensions not required.

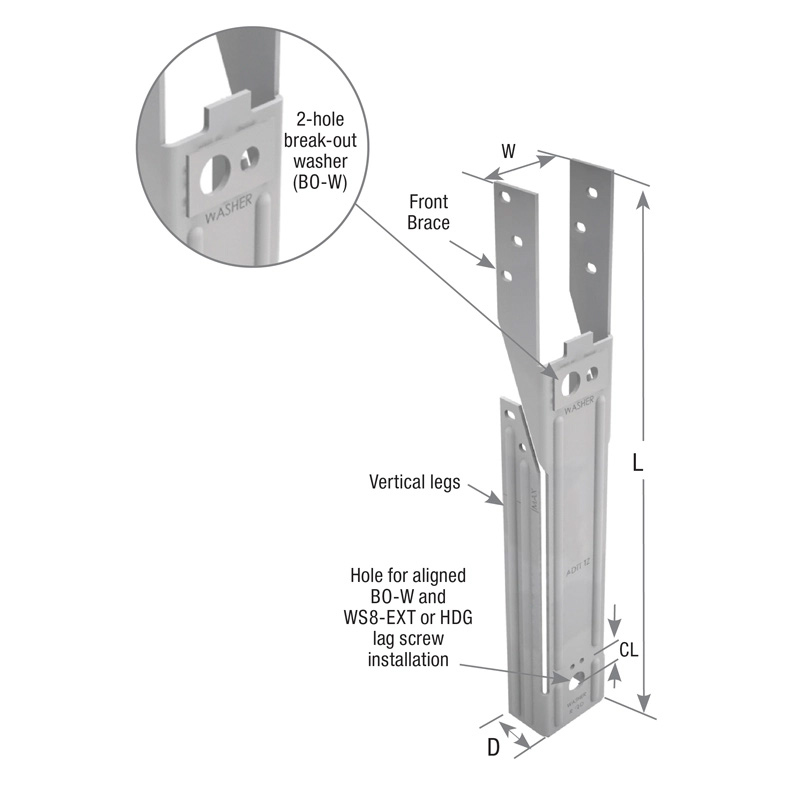

• Dimensions:
  • Width: 1-9/16″
  • Length: 10-1/2″
  • Depth: 15/16″
