Carton of (50) 1-9/16 in. x 7-3/4 in. x 1-3/4 in. 18 Ga. Steel Triple Zinc Joist Hangers

7995

$0.00

Resources and Downloads

Warranty

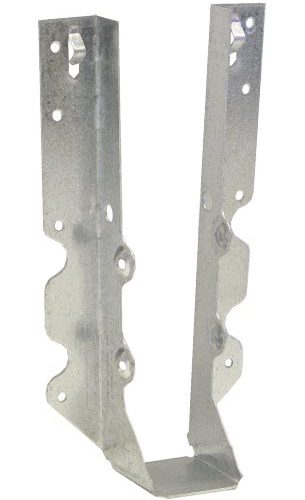

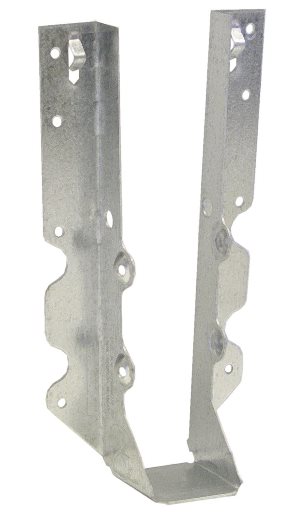

JUS210-TZ Joist Hanger – Carton of 50

The JUS210-TZ Joist Hanger is a heavy-duty, high-performance connector for 2×10 and 2×12 joists. Part of USP’s HUS, JUS, and MUS series, it features a double-shear nailing system with 30° to 45° slant nailing, allowing for higher load capacity while reducing the need for extra nails. Made from 18-gauge steel and coated with a triple zinc (TZ) finish, this hanger provides corrosion resistance and long-term strength for both indoor and outdoor framing applications.

Key Features:

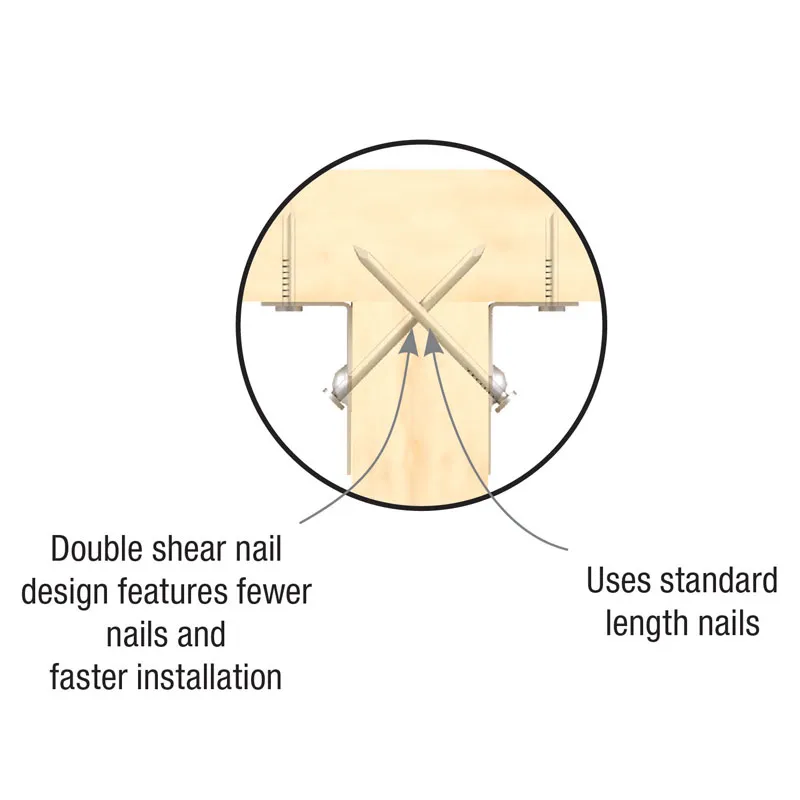

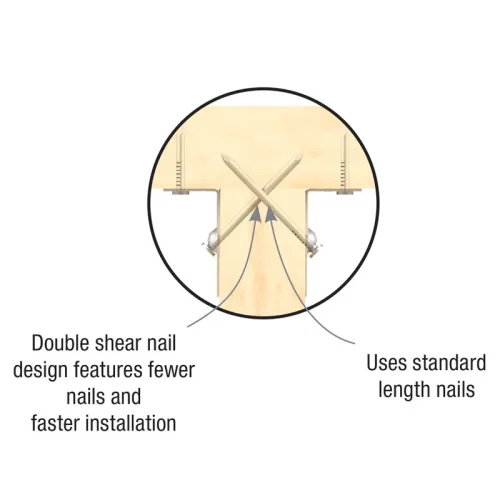

  • Double-Shear Nailing – Slant nailing at 30° to 45° improves load capacity while reducing nail usage.
  • Joist Compatibility – Designed to fit 2×10 and 2×12 joists, offering versatility for larger framing projects.
  • Heavy-Duty 18-Gauge Steel – Built for strength, stability, and long-lasting support.
  • Triple Zinc Coating (TZ) – Corrosion-resistant finish provides protection in outdoor and moisture-prone environments.

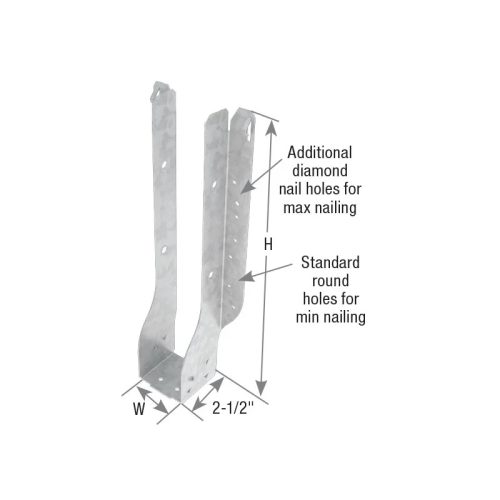

Detailed Dimensions:

  • Width: 1-9/16″
  • Height: 7-3/4″
  • Depth: 1-3/4″
  • A (Seat Depth): 1″

Fastening Requirements:

  • Header: (8) 10d nails
  • Joist: (4) 10d nails

Load Capacity:

  • 1305 DF-L/SP – Engineered for heavy-duty load support, making it ideal for demanding framing applications.

Packaging Details:

  • Quantity: 50 JUS210-TZ Joist Hangers per carton
  • Reference: USP #LUS210
  • Supplier: USP

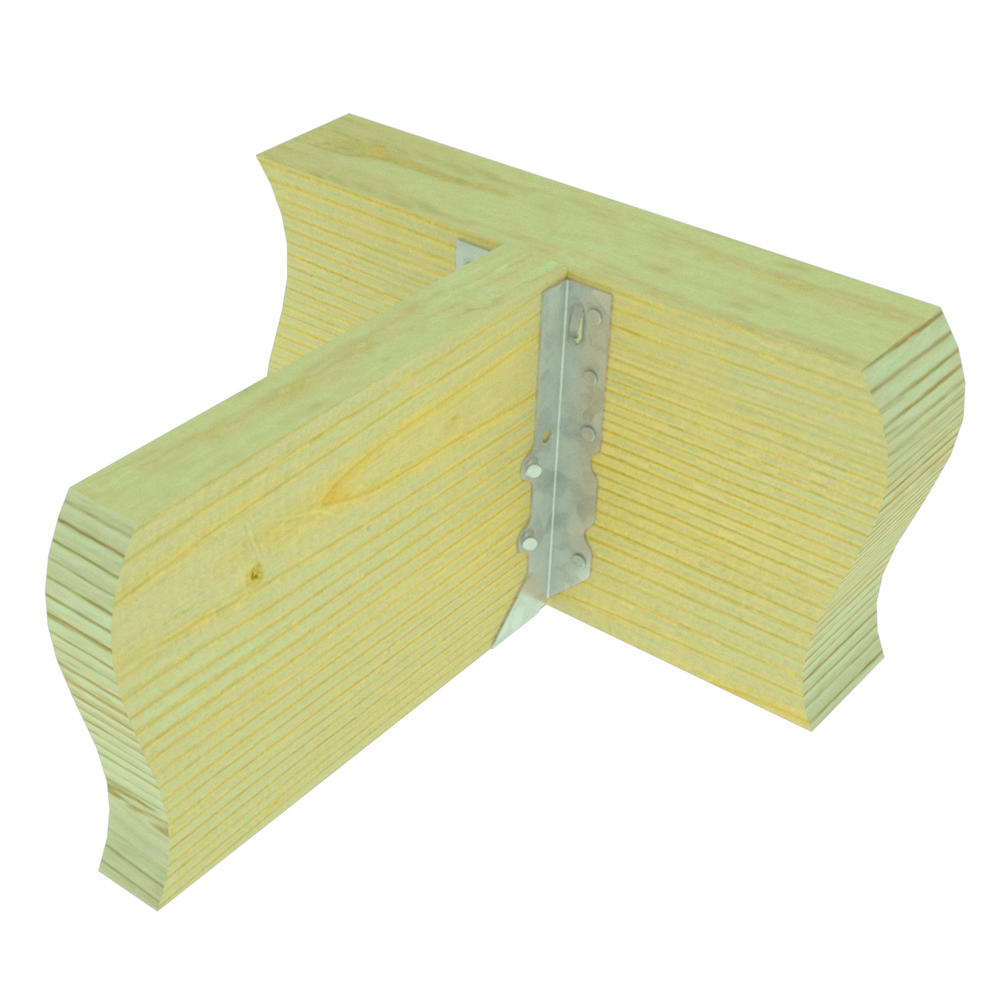

For strong, efficient joist-to-header connections, the JUS210-TZ Joist Hanger delivers exceptional load capacity, corrosion resistance, and ease of installation.
