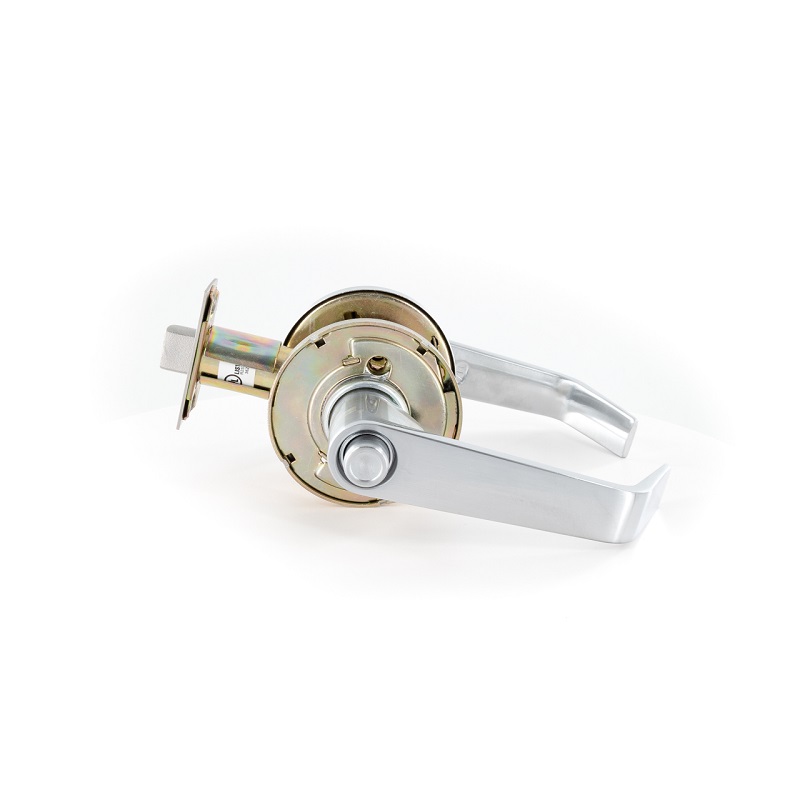

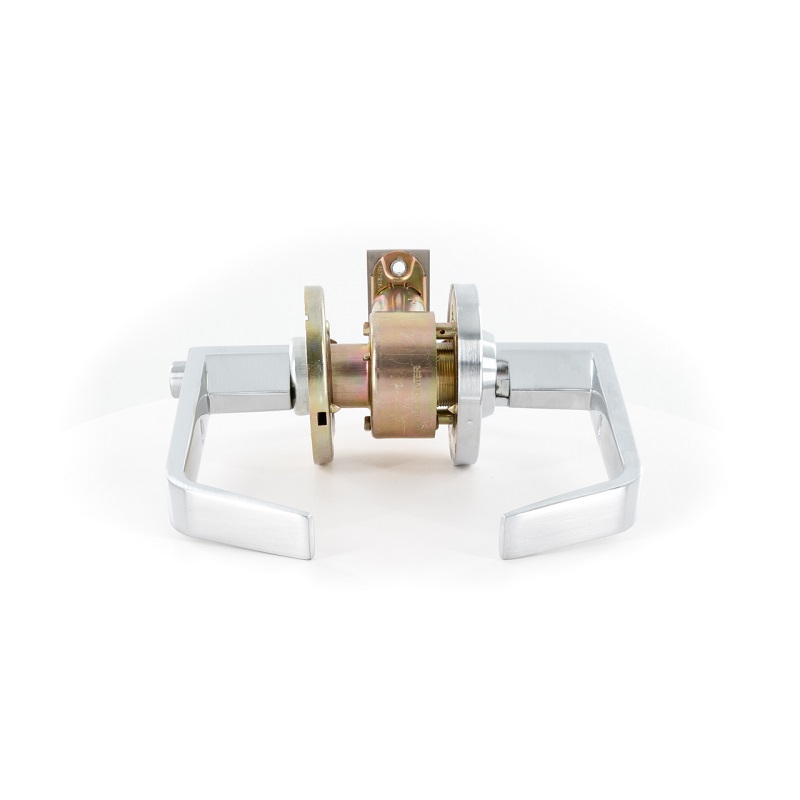

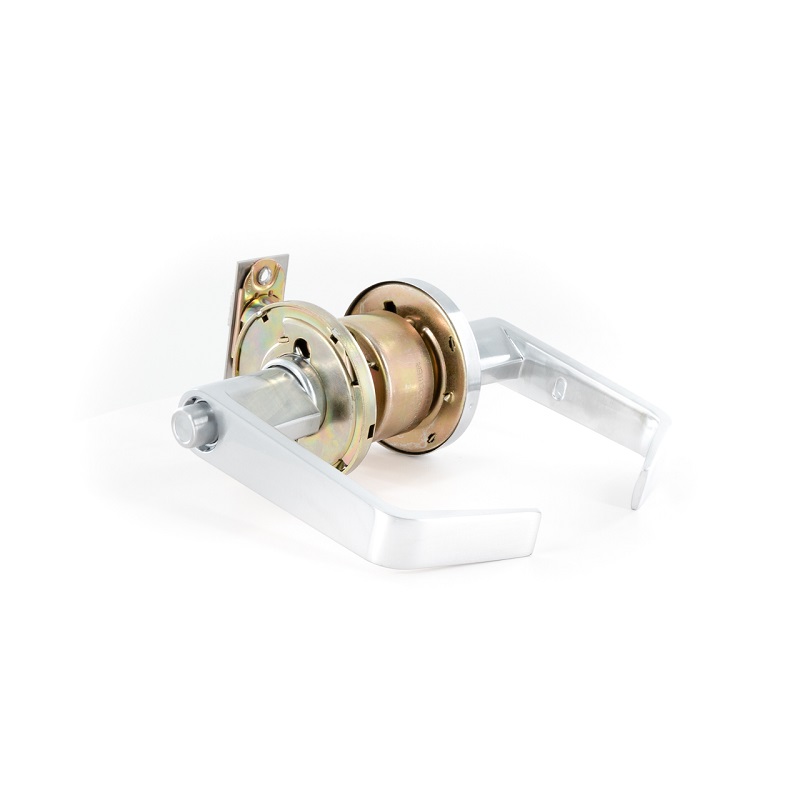

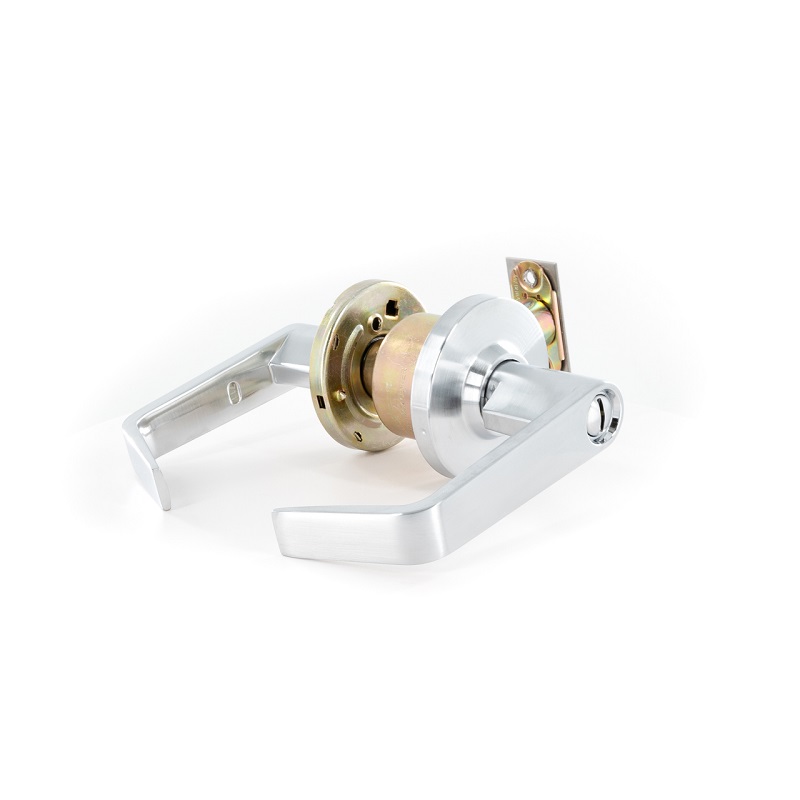

Design Hardware V-76-F Privacy Lever Lockset

The Design Hardware V-76-F Privacy Lever Lockset is a durable, Grade 2 lockset designed for privacy applications in commercial and residential settings. With ADA compliance, UL fire rating, and vandal-resistant clutching levers, this lock provides reliable security and long-term performance for interior doors.

Key Features

• ANSI Grade 2 Certified – Meets and exceeds ANSI A156.2, Series 4000 standards
• UL Listed – Certified for “A” Label 3-hour fire-rated doors
• ADA Compliant – Meets ADA & ANSI A117.1 accessibility codes
• Clutching Mechanism – Prevents damage from forced entry attempts
• Anti-Sag Lever Return – Independent return springs prevent sagging
• Non-Handed Design – Fully reversible for left- or right-hand doors

Technical Specifications

• Trim Construction:
  • 5-inch solid zinc diecast lever
  • 3-inch wrought brass rose (does not cover through-bolt holes)
• Backset & Latchface:
  • Standard: 2-3/4-inch backset, 1-1/8-inch x 2-1/4-inch latchface
  • Optional: 2-3/8-inch backset, 1-inch x 2-1/4-inch latchface
  • Self-adjusting front for square or beveled edge doors
• Latchbolt:
  • Stainless steel with 1/2-inch projection
  • Deadlocking mechanism for privacy function
• Door Prep: ANSI A115.2 – 2-1/8-inch crossbore
• Door Thickness:
  • Factory set for 1-3/4-inch doors
  • Adjustable for 1-3/8-inch to 2-inch thick doors

Available Lever Styles and Finishes

• Lever Styles:
  • Flat Lever (Stocked in US26D and US10B)
  • Curved Lever (Stocked in US26D)
• Standard Finishes:
  • US26D (Satin Chrome)
  • US10B (Oil-Rubbed Bronze)
• Special Order Finishes:
  • US3 PVD, US4, US15, US26 PVD (PVD provides a lifetime finish)

Additional Features

• Combination Screws – Compatible with wood or metal doors and frames
• Easy Installation – Designed for quick and seamless setup
• Limited Lifetime Warranty – Ensures long-term reliability and performance

Applications

• Commercial buildings – Offices, schools, hospitals, and restrooms
• Multi-family housing – Apartments, condominiums, and hotels
• Interior privacy doors – Bathrooms, bedrooms, and meeting rooms

The Design Hardware V-76-F Privacy Lever Lockset delivers smooth operation, durability, and a modern aesthetic, making it an excellent choice for privacy doors in high-use environments.
