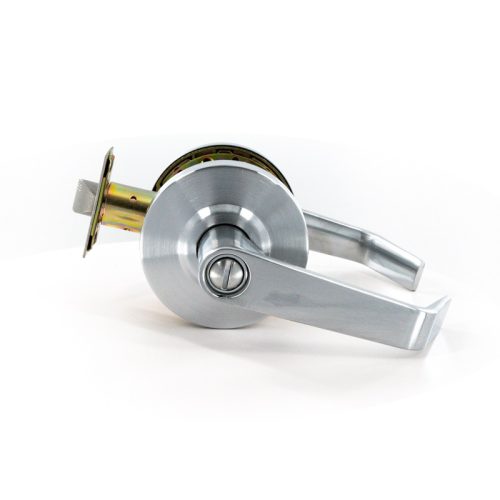

Design Hardware V-82-C US-26D Curved Flat Lever Lock

The Design Hardware V-82-C Curved Flat Lever Lock is a Grade 2 commercial lever lock designed for security, durability, and accessibility. Engineered for high-traffic environments, it meets ANSI and ADA standards while offering a clutching mechanism for vandal resistance.

Key Features

• ANSI Grade 2 Certified – Meets and exceeds ANSI A156.2, Series 4000 standards
• UL Listed – Certified for “A” Label 3-hour fire-rated doors
• ADA Compliant – Meets ADA and ANSI A117.1 accessibility codes
• Clutching Mechanism – Provides vandal resistance on locking functions
• Anti-Sag Lever Return – Independent lever return springs prevent sagging
• Non-Handed – Fully reversible for left- or right-handed installations

Technical Specifications

• Chassis Material: Steel with zinc dichromate coating for corrosion resistance
• Trim: 5-inch solid zinc diecast lever with 3-inch wrought brass rose
• Backset & Latchface:
  • Standard: 2-3/4-inch backset, 1-1/8-inch x 2-1/4-inch latchface
  • Optional: 2-3/8-inch backset, 1-inch x 2-1/4-inch latchface
  • Self-adjusting front for square or beveled edge doors

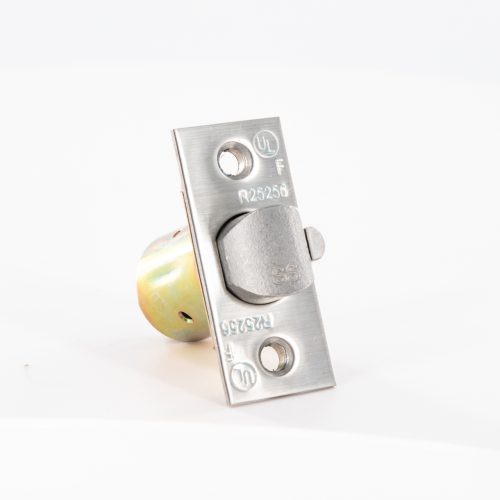

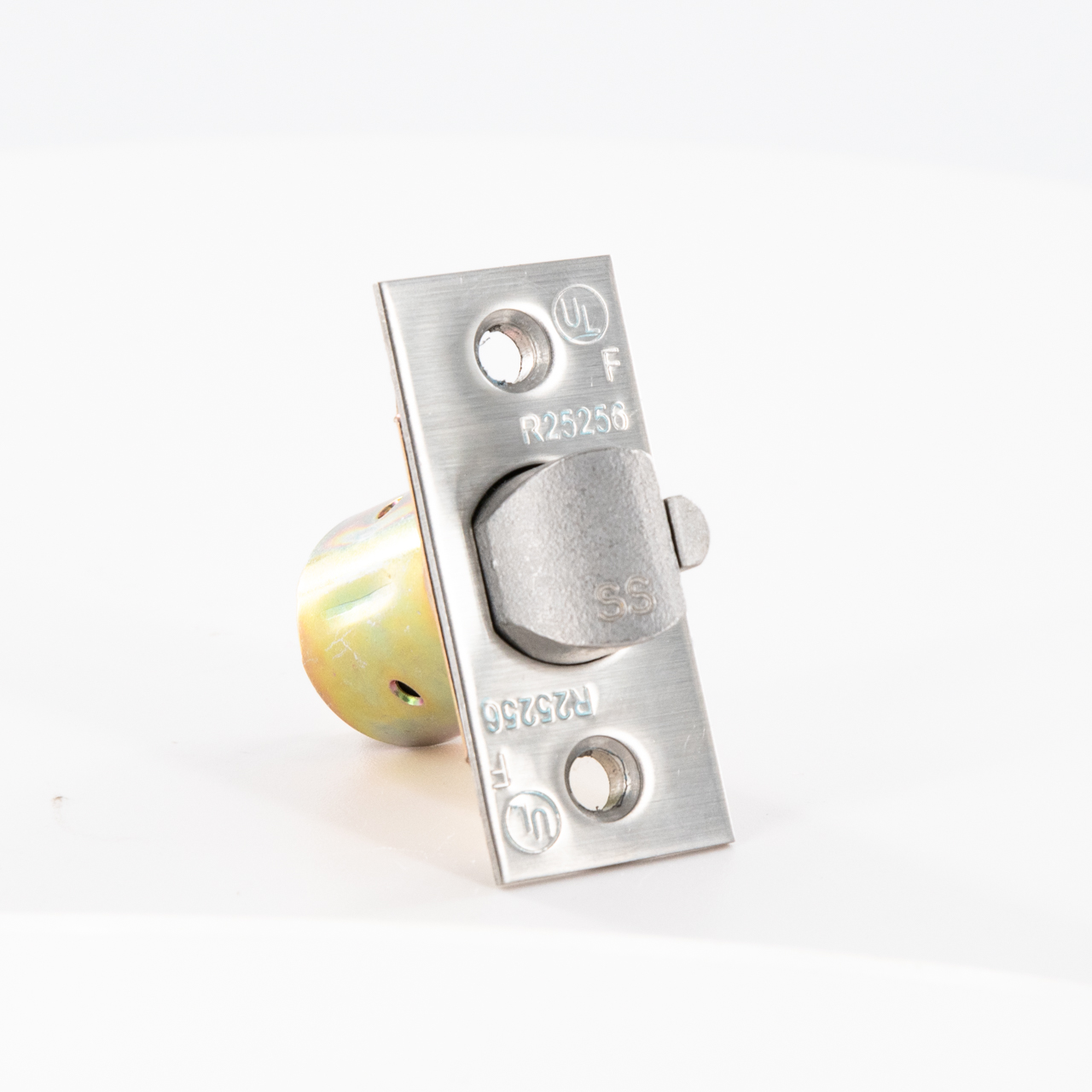

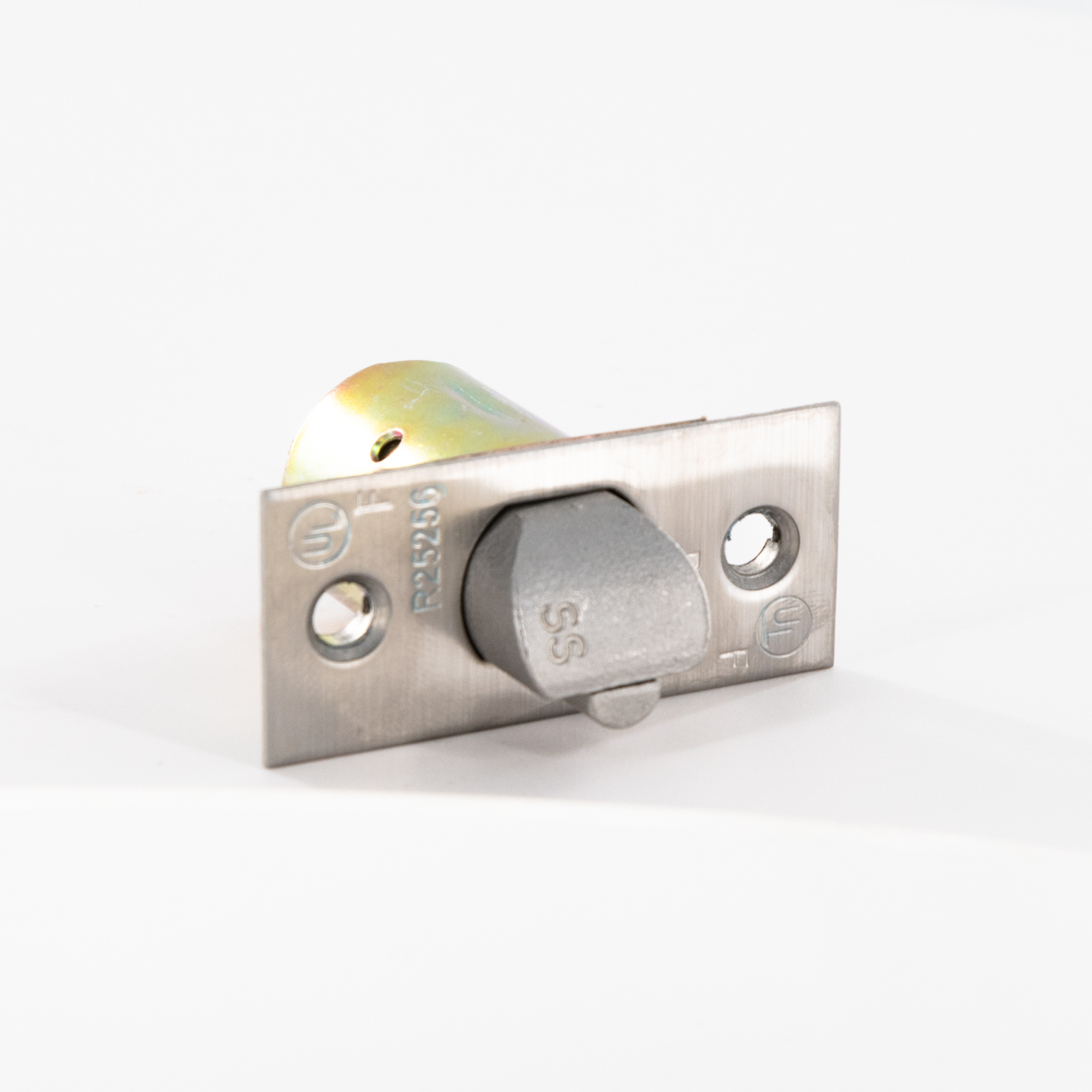

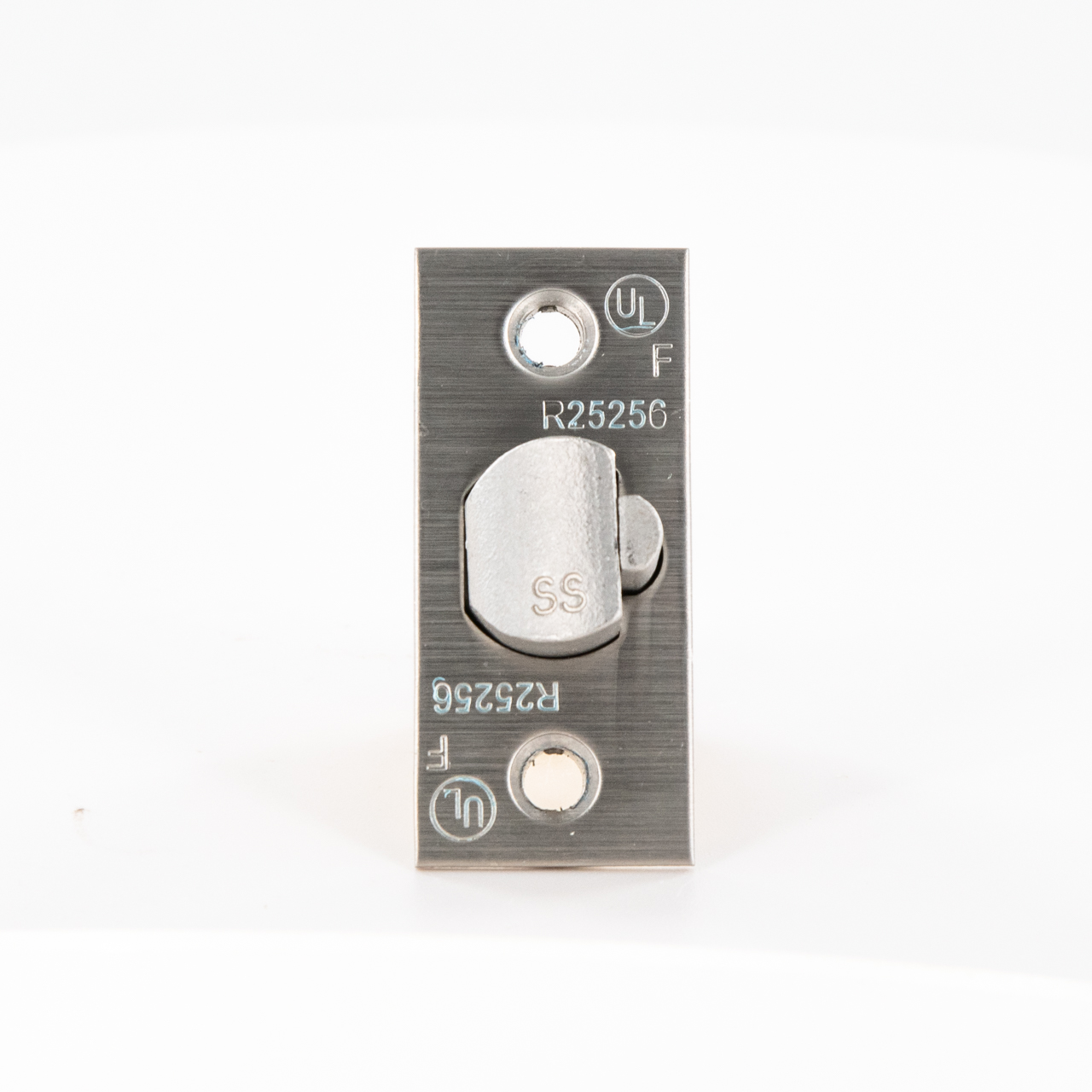

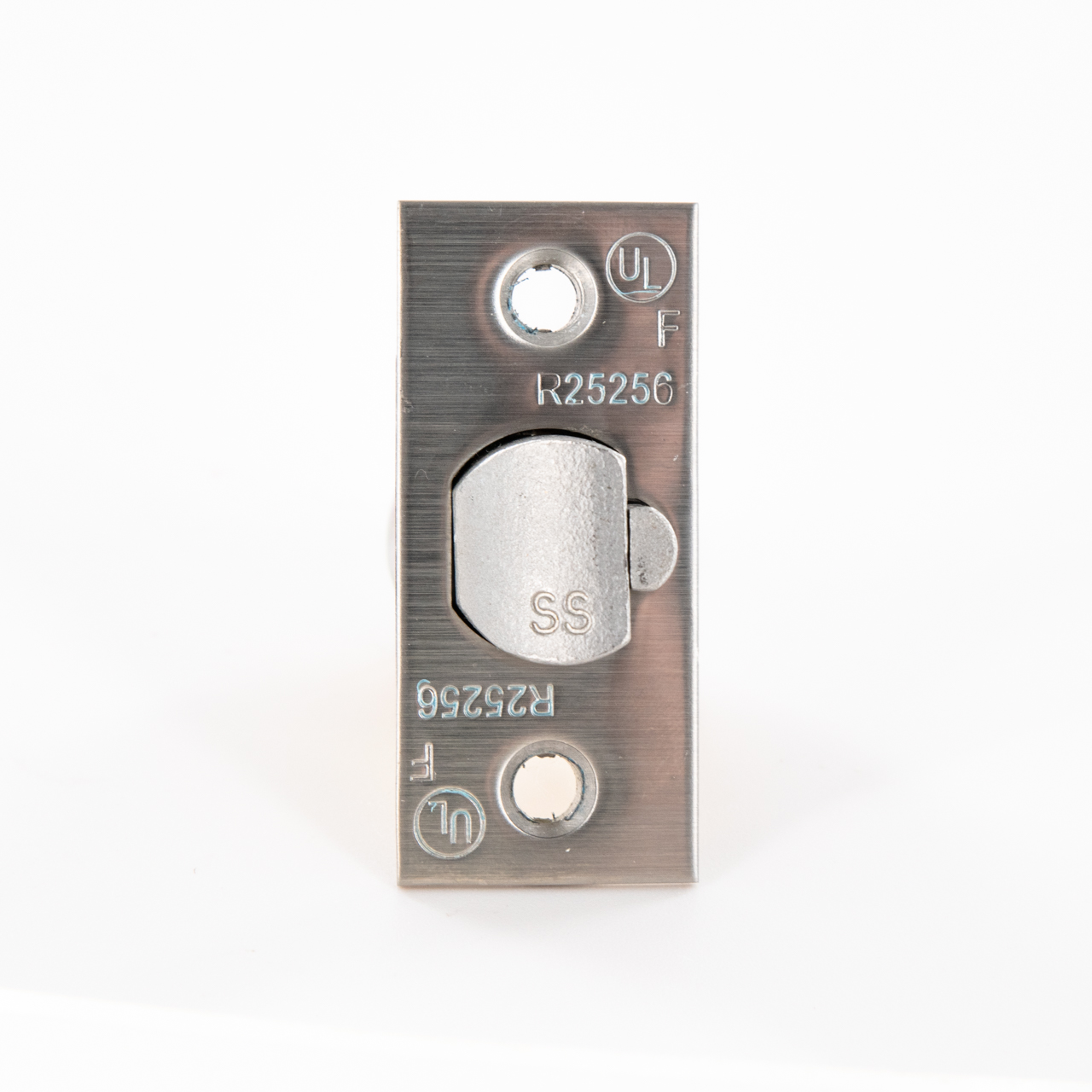

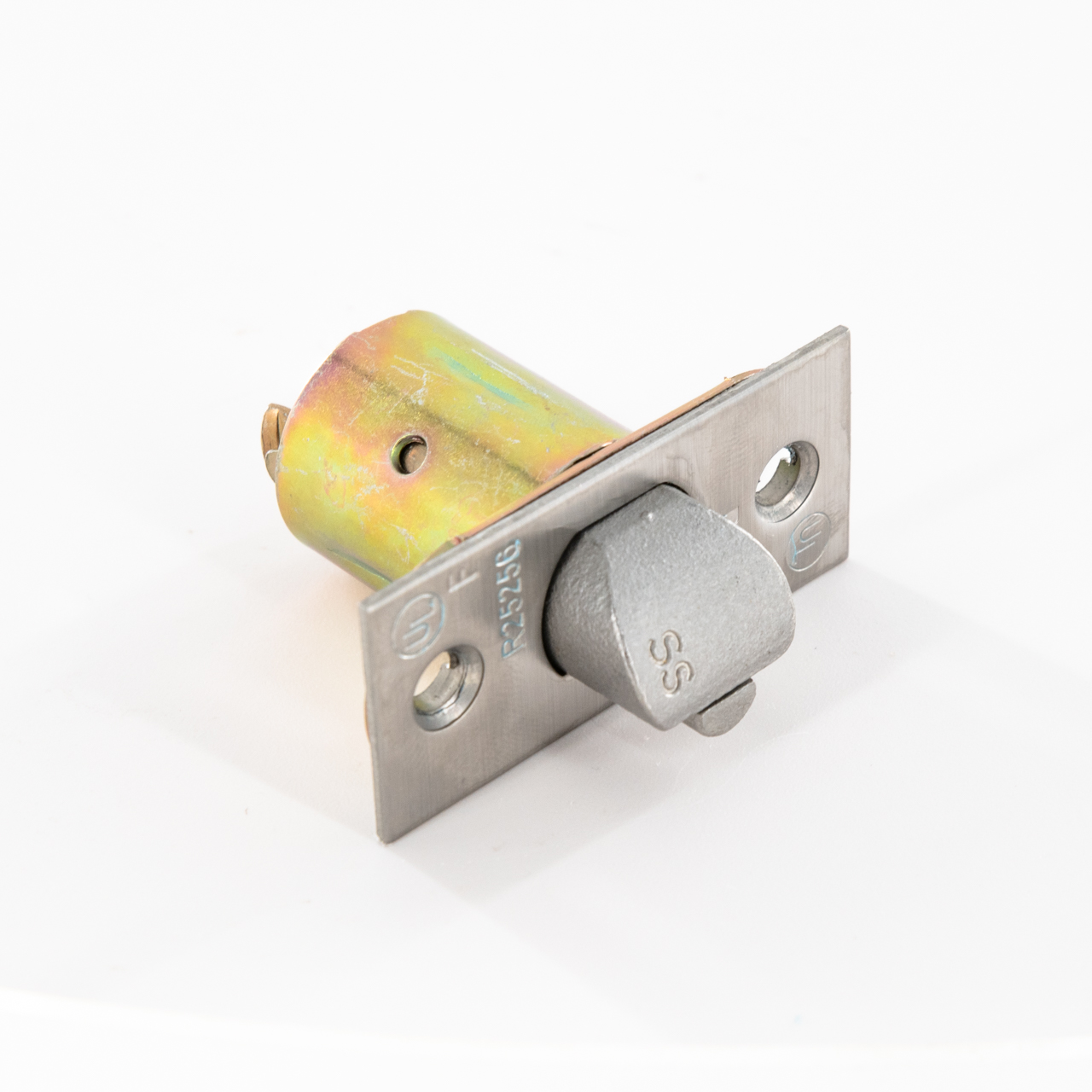

• Latchbolt: Stainless steel with 1/2-inch projection, deadlocking on keyed functions
• Cylinder:
  • 6-pin solid brass, C keyway, with two silver nickel keys
  • Optional keyways available (11 competitor keyways)
  • Replacement cylinders supplied loose (not pre-installed)
• Strikes:
  • Standard: 4-7/8-inch x 1-1/4-inch ASA
  • Optional: 2-3/4-inch T strike or full lip strike with 1/4-inch radius corner
• Door Prep: ANSI A115.2 – 2-1/8-inch crossbore
• Door Thickness:
  • Factory set for 1-3/4-inch doors
  • Adjustable for 1-3/8-inch to 2-inch thick doors

Available Lever Styles and Finishes

• Standard Lever:
  • Flat Lever: Available in US26D (Satin Chrome) and US10B (Oil-Rubbed Bronze)
  • Curved Lever: Available in US26D (Satin Chrome)
• Additional Lever Styles: Curved, Half Curved, S-A, and S-B available in lever kits
• Special Order Finishes: US3 PVD, US4, US15, US26 PVD (PVD provides a lifetime finish)

Additional Features

• Combination Screws – Compatible with wood or metal doors and frames
• Vandal-Resistant Design – Clutching mechanism prevents forced entry
• Limited Lifetime Warranty – Ensures long-lasting performance

Applications

• Commercial buildings – Offices, schools, healthcare facilities
• Multi-family housing – Apartments, condominiums, hotels
• Retail and public spaces – High-traffic doors requiring security and durability

The Design Hardware V-82-C Curved Flat Lever Lock is built to provide reliable performance, enhanced security, and long-term durability in a variety of commercial and residential applications.
