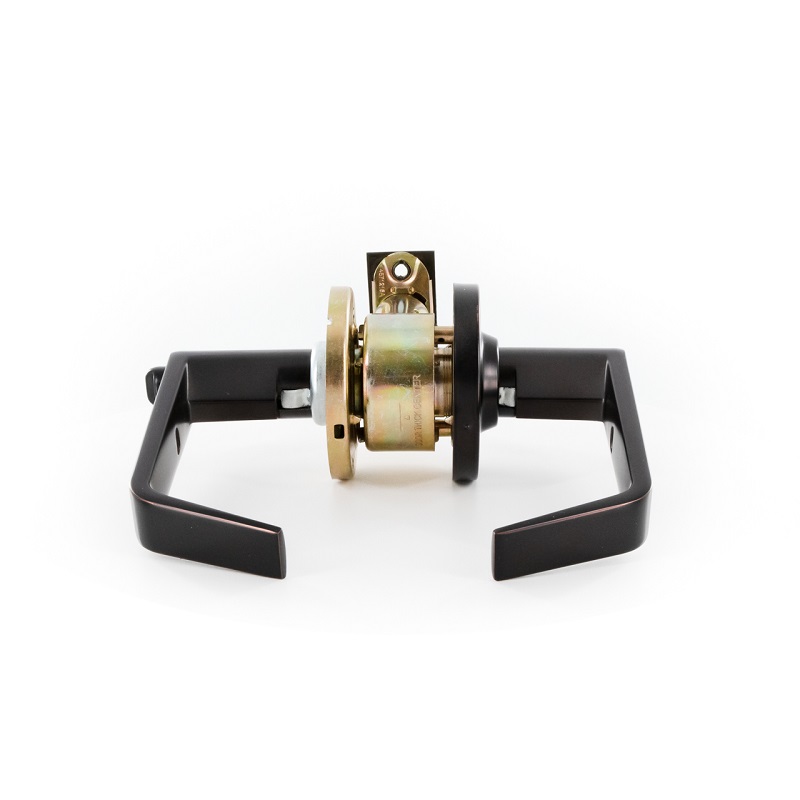

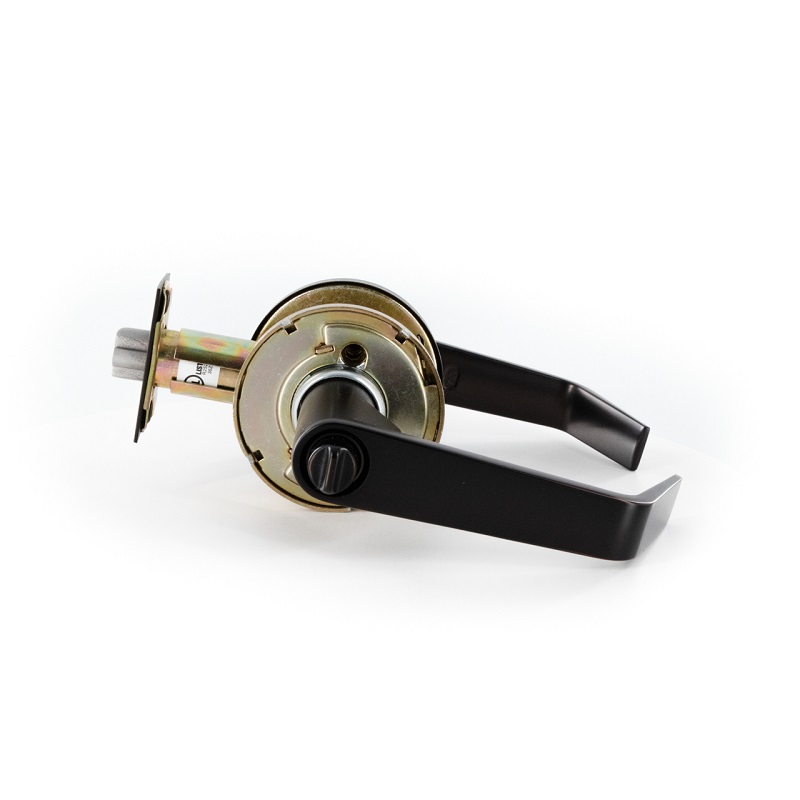

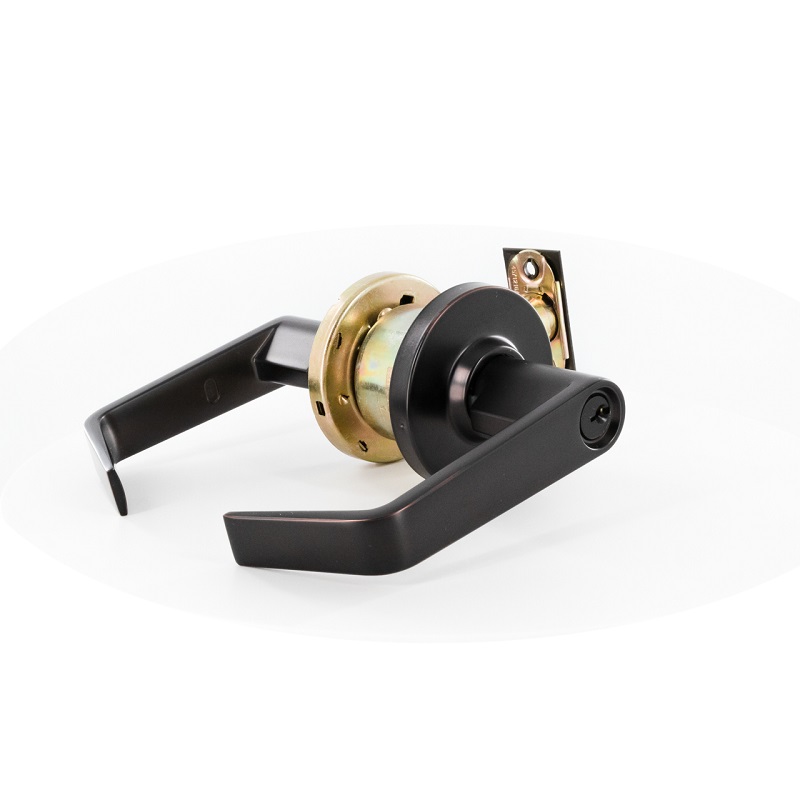

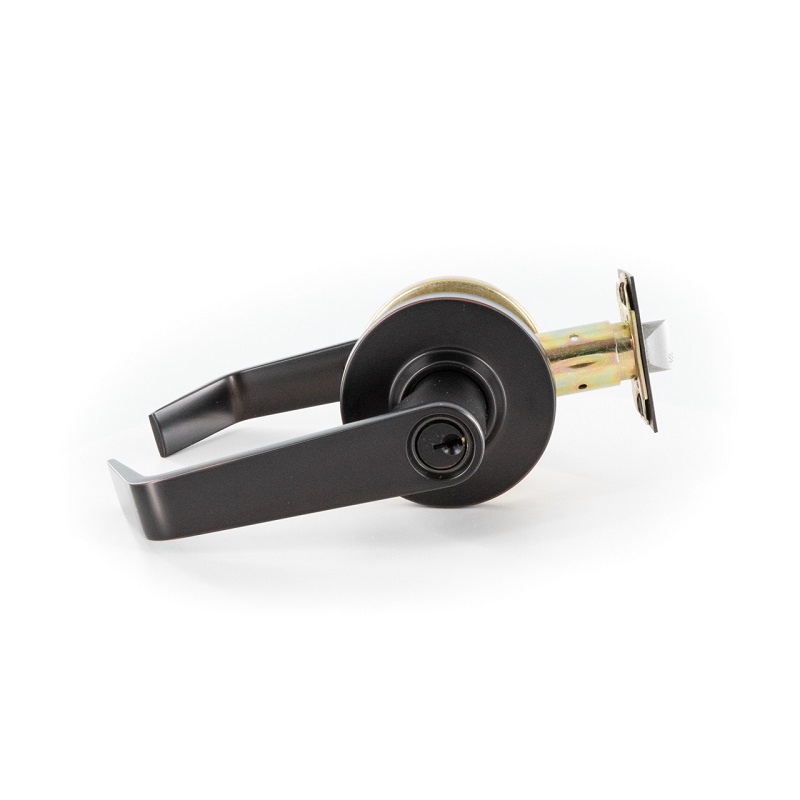

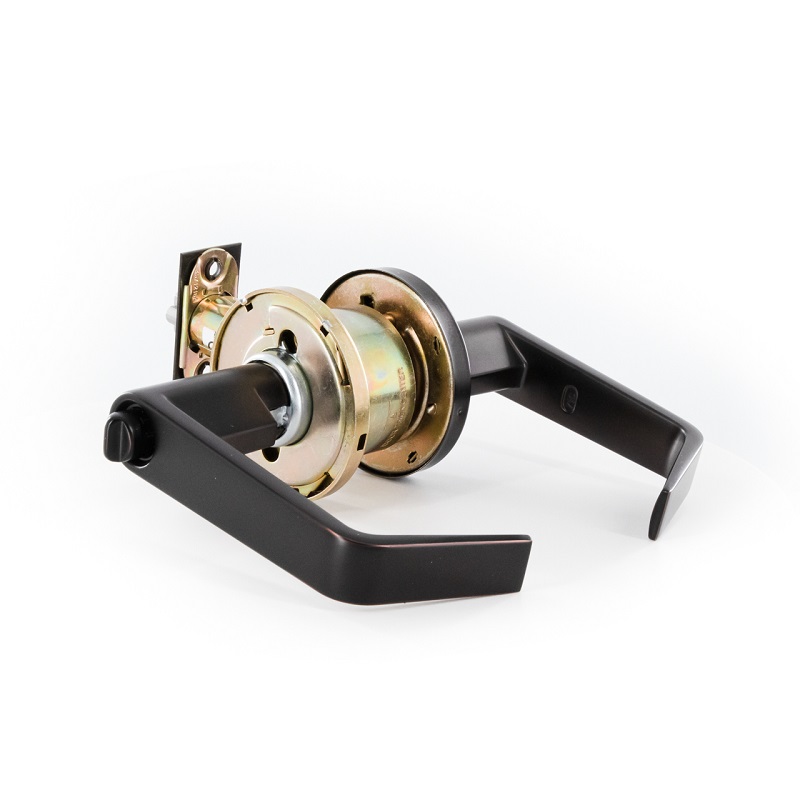

Design Hardware V-82-F Entry Flat Lever Lockset, Oil Rubbed Bronze

The Design Hardware V-82-F Entry Flat Lever Lockset is a Grade 2 commercial and residential lever lockset designed for security, durability, and ease of use. With a vandal-resistant clutching mechanism, ADA compliance, and UL fire rating, this lockset is ideal for high-traffic entry doors where security and functionality are essential.

Key Features

• ANSI Grade 2 Certified – Meets and exceeds ANSI A156.2, Series 4000 standards
• ADA Compliant – Designed to meet ADA & ANSI A117.1 accessibility codes
• Corrosion-Resistant Chassis – Steel construction with zinc dichromate coating for durability
• Clutching Mechanism – Protects against forced entry attempts
• Anti-Sag Lever Return – Independent return springs prevent lever sag
• Non-Handed Design – Fully reversible for left- or right-hand doors

Technical Specifications

• Lever Construction:
  • 5-inch solid zinc diecast lever
  • 3-inch wrought brass rose (does not cover through-bolt holes)
• Backset & Latchface:
  • Standard: 2-3/4-inch backset, 1-1/8-inch x 2-1/4-inch latchface
  • Optional: 2-3/8-inch backset, 1-inch x 2-1/4-inch latchface
  • Self-adjusting front for square or beveled edge doors
• Latchbolt:
  • Stainless steel with 1/2-inch projection
  • Deadlocking mechanism for keyed entry function
• Cylinder:
  • 6-pin solid brass, C keyway, with two silver nickel keys
  • Replacement cylinders supplied loose (not pre-installed)
• Strike Options:
  • Standard: 4-7/8-inch x 1-1/4-inch ASA
  • Optional: 2-3/4-inch T strike or full lip strike with 1/4-inch radius corner
• Door Prep: ANSI A115.2 – 2-1/8-inch crossbore
• Door Thickness:
  • Factory set for 1-3/4-inch doors
  • Adjustable for 1-3/8-inch to 2-inch thick doors

Available Lever Styles and Finishes

• Lever Styles:
  • Flat Lever (Stocked in US26D and US10B)
  • Curved Lever (Stocked in US26D)
• Standard Finishes:
  • US26D (Satin Chrome)
  • US10B (Oil-Rubbed Bronze)
• Special Order Finishes:
  • US3 PVD, US4, US15, US26 PVD (PVD provides a lifetime finish)

Additional Features

• Combination Screws – Compatible with wood or metal doors and frames
• Secure, Vandal-Resistant Design – Clutching mechanism protects against forced entry
• Limited Lifetime Warranty – Ensures long-term reliability

Applications

• Commercial buildings – Offices, schools, hospitals, and retail spaces
• Multi-family housing – Apartments, condominiums, and hotels
• Entry doors – High-traffic areas requiring secure, durable locksets

The Design Hardware V-82-F Entry Flat Lever Lockset in Oil-Rubbed Bronze delivers strength, functionality, and long-lasting performance, making it an excellent choice for entry doors in demanding environments.
