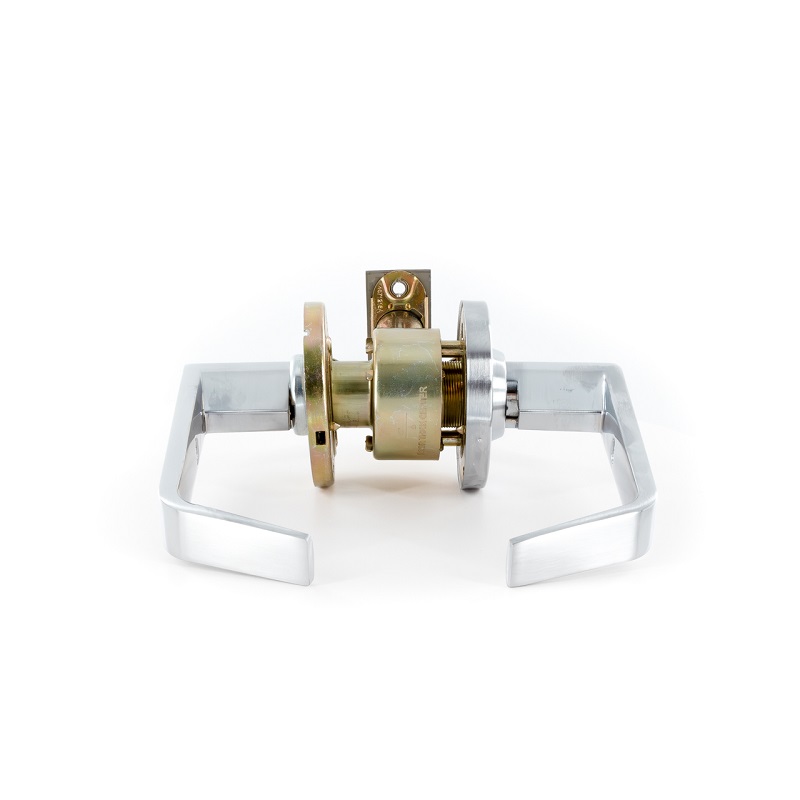

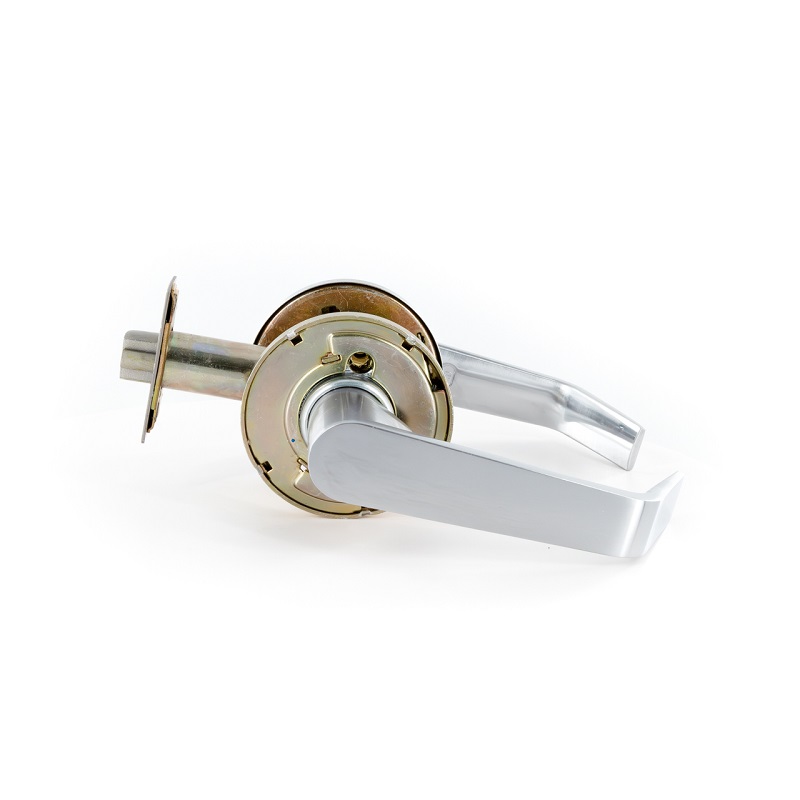

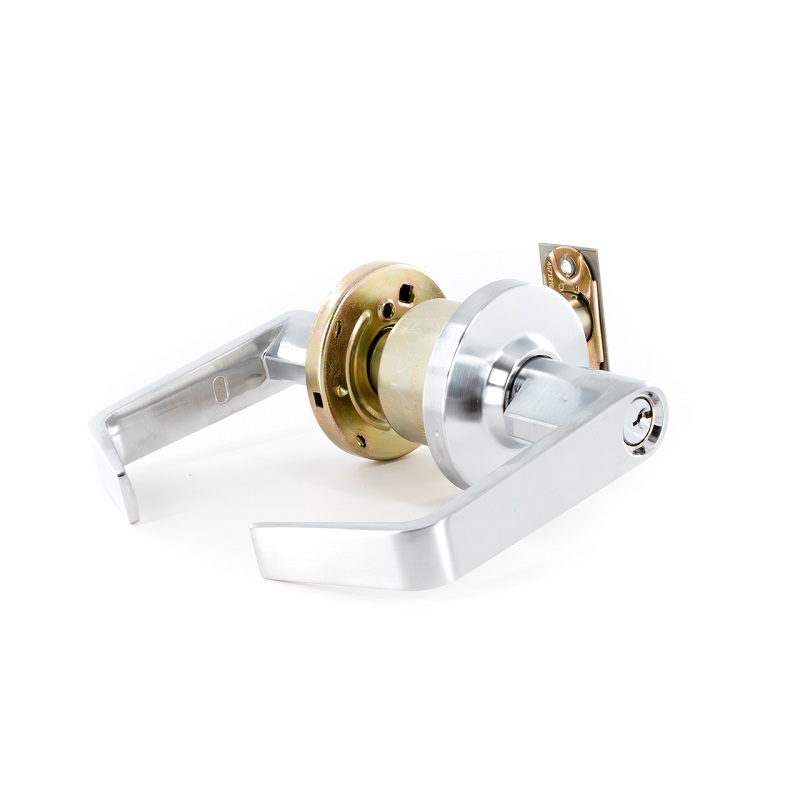

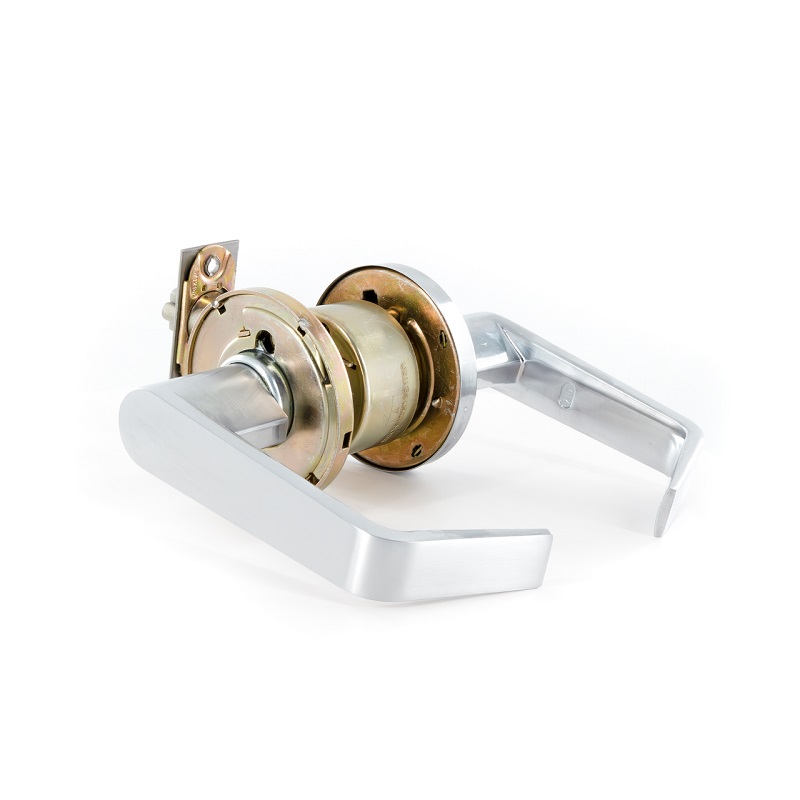

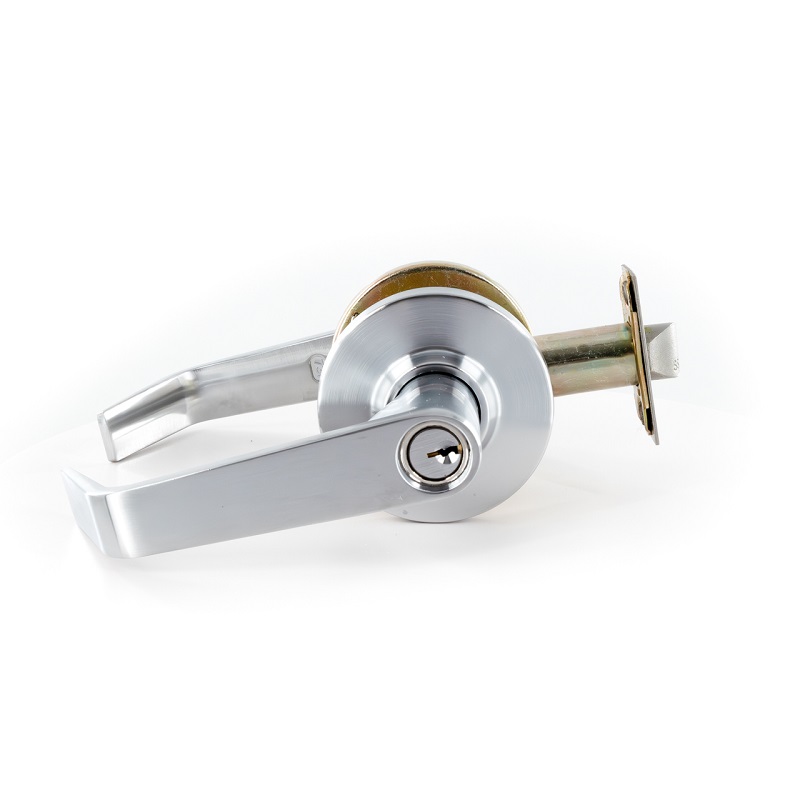

Design Hardware V-86-F Storeroom Flat Lever Lockset

The Design Hardware V-86-F Storeroom Flat Lever Lockset is a Grade 2 commercial lever lockset designed for high-security storeroom applications. This lock remains locked at all times, requiring a key for entry, making it ideal for storage rooms, supply closets, and restricted access areas. With a vandal-resistant clutching mechanism, ADA compliance, and UL fire rating, this lockset ensures durability, accessibility, and security.

Key Features

• ANSI Grade 2 Certified – Meets and exceeds ANSI A156.2, Series 4000 standards
• UL Listed – Certified for “A” Label 3-hour fire-rated doors
• ADA Compliant – Meets ADA & ANSI A117.1 accessibility codes
• Clutching Mechanism – Protects against forced entry and vandalism
• Anti-Sag Lever Return – Independent return springs prevent lever sag
• Non-Handed Design – Fully reversible for left- or right-hand doors
• Storeroom Functionality – Remains locked at all times, requiring a key for access

Technical Specifications

• Lever Construction:
  • 5-inch solid zinc diecast lever
  • 3-inch wrought brass rose (does not cover through-bolt holes)
• Backset & Latchface:
  • Standard: 2-3/4-inch backset, 1-1/8-inch x 2-1/4-inch latchface
  • Optional: 2-3/8-inch backset, 1-inch x 2-1/4-inch latchface
  • Self-adjusting front for square or beveled edge doors
• Latchbolt:
  • Stainless steel with 1/2-inch projection
  • Deadlocking mechanism for storeroom security
• Cylinder:
  • 6-pin solid brass, C keyway, with two silver nickel keys
  • Optional keyways available (11 competitor keyways)
  • Replacement cylinders supplied loose (not pre-installed)
• Strike Options:
  • Standard: 4-7/8-inch x 1-1/4-inch ASA
  • Optional: 2-3/4-inch T strike or full lip strike with 1/4-inch radius corner
• Door Prep: ANSI A115.2 – 2-1/8-inch crossbore
• Door Thickness:
  • Factory set for 1-3/4-inch doors
  • Adjustable for 1-3/8-inch to 2-inch thick doors

Available Lever Styles and Finishes

• Lever Styles:
  • Flat Lever (Stocked in US26D and US10B)
  • Curved Lever (Stocked in US26D)
• Standard Finishes:
  • US26D (Satin Chrome)
  • US10B (Oil-Rubbed Bronze)
• Special Order Finishes:
  • US3 PVD, US4, US15, US26 PVD (PVD provides a lifetime finish)

Additional Features

• Combination Screws – Compatible with wood or metal doors and frames
• Vandal-Resistant Design – Clutching mechanism protects against forced entry
• Limited Lifetime Warranty – Ensures long-term reliability

Applications

• Commercial buildings – Offices, warehouses, and storage areas
• Schools and healthcare facilities – Supply rooms and restricted access areas
• Retail and industrial settings – Securing valuable inventory

The Design Hardware V-86-F Storeroom Flat Lever Lockset provides high security, durability, and ease of use, making it an excellent choice for storerooms and restricted-access locations.
