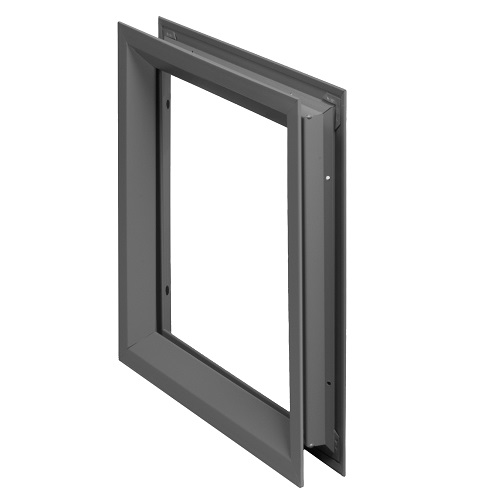

L-FRA 100 Frame with 1/4″ Wire Glass and GT-118 Glazing Tape. 90 Minute Fire Rating.

The L-FRA 100 Frame is designed for superior safety and durability, providing 90-minute fire protection while maintaining a clean, functional design. Constructed from 18-gauge cold rolled steel with mitered and welded corners, this frame offers a robust structure capable of withstanding heavy use and high-heat conditions. The integrated 1/4″ wire glass combined with GT-118 glazing tape ensures both fire resistance and impact durability, making it ideal for commercial, industrial, and institutional settings.

Key Features:

• 18-Gauge Cold Rolled Steel: Provides exceptional strength and durability, designed for high-traffic and demanding environments.
• 1/4″ Wire Glass: Offers enhanced fire resistance and impact safety while allowing light to pass through.
• GT-118 Glazing Tape: Ensures a secure, heat-resistant seal between the frame and glass, maintaining fire-rated integrity.
• Mitered & Welded Corners: Reinforced with welded clips for additional structural integrity.
• Counter-Sunk Mounting Screw-Holes: Pre-drilled for easy installation with #8 x 1-3/4″ Phillips head screws (included).
• Gray Primer (GPZ) Powder Coat Finish: Corrosion-resistant and ready for final paint application.
• Standard Door Compatibility: Designed for 1-3/4″ thick doors within industry tolerance (+/- 1/16″).
• 90-Minute Fire Rating: Ideal for areas requiring enhanced fire protection.

Product Specifications:

• Frame Type: L-FRA 100
• Material: 18-Gauge Cold Rolled Steel
• Glass Type: 1/4″ Wire Glass
• Glazing Tape: GT-118 Heat-Resistant Glazing Tape
• Finish: Gray Primer (GPZ) Powder Coat
• Corner Construction: Mitered & Welded with Reinforcing Clips
• Mounting Hardware: #8 x 1-3/4″ Phillips Head Screws
• Door Thickness Compatibility: 1-3/4″
• Fire Rating: 90 Minutes

Certifications & Compliance:

• UL Certified to CAN/ULC-S104 and ANSI/UL10B for use on:
  • Hollow Metal Fire Doors (up to 3 hours)
  • Wood Fire Doors (up to 90 minutes)
• Positive Pressure Rated under ANSI/UL10C, compliant with:
  • IBC (International Building Code)
  • NFPA 80 (Fire Doors and Other Opening Protectives)
  • NFPA 252 (Fire Tests of Door Assemblies)

Ideal Applications:

• Commercial Buildings
• Industrial Facilities
• Schools & Universities
• Healthcare Facilities
• Institutional Settings

Why Choose the L-FRA 100 Frame?

• Maximum Fire Safety: Certified for up to 90 minutes on wood doors and 3 hours on hollow metal doors.
• Durable & Secure: Heavy-duty steel construction with impact-resistant wire glass for enhanced protection.
• Flexible Installation: Pre-punched mounting holes and included fasteners streamline setup.
• Code-Compliant: Meets strict safety standards for commercial and industrial buildings.
• Aesthetic Ready: Primed for final painting to match existing decor.

The L-FRA 100 Frame with 1/4″ wire glass and GT-118 glazing tape is an industry-leading solution for applications requiring fire-rated protection, impact safety, and design flexibility. Backed by UL certifications and built to withstand the demands of commercial and industrial environments, this frame ensures long-lasting performance and peace of mind.
