Carton of (100) 18 Ga. Steel Triple Zinc Joist Hangers

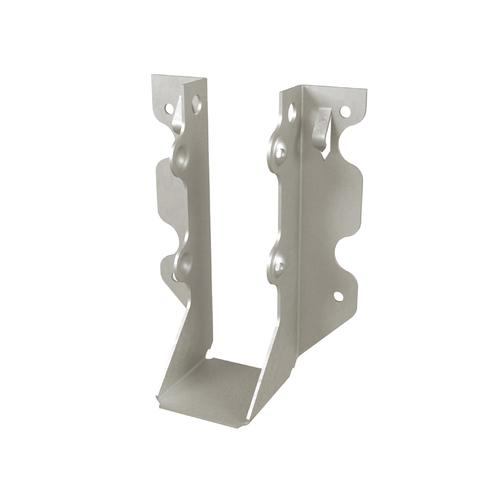

JUS26-TZ Joist Hanger – Carton of 100

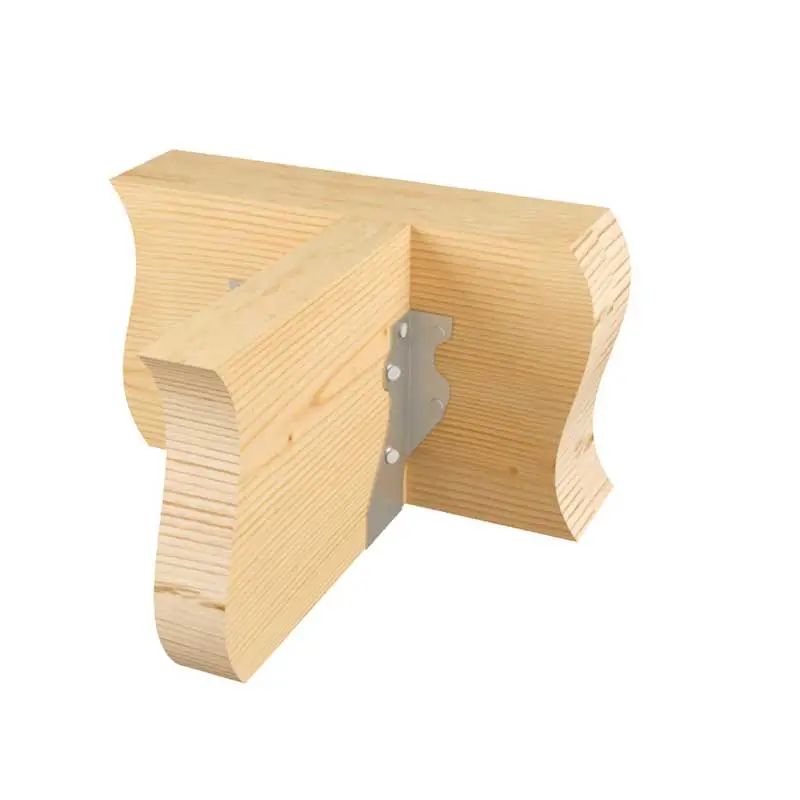

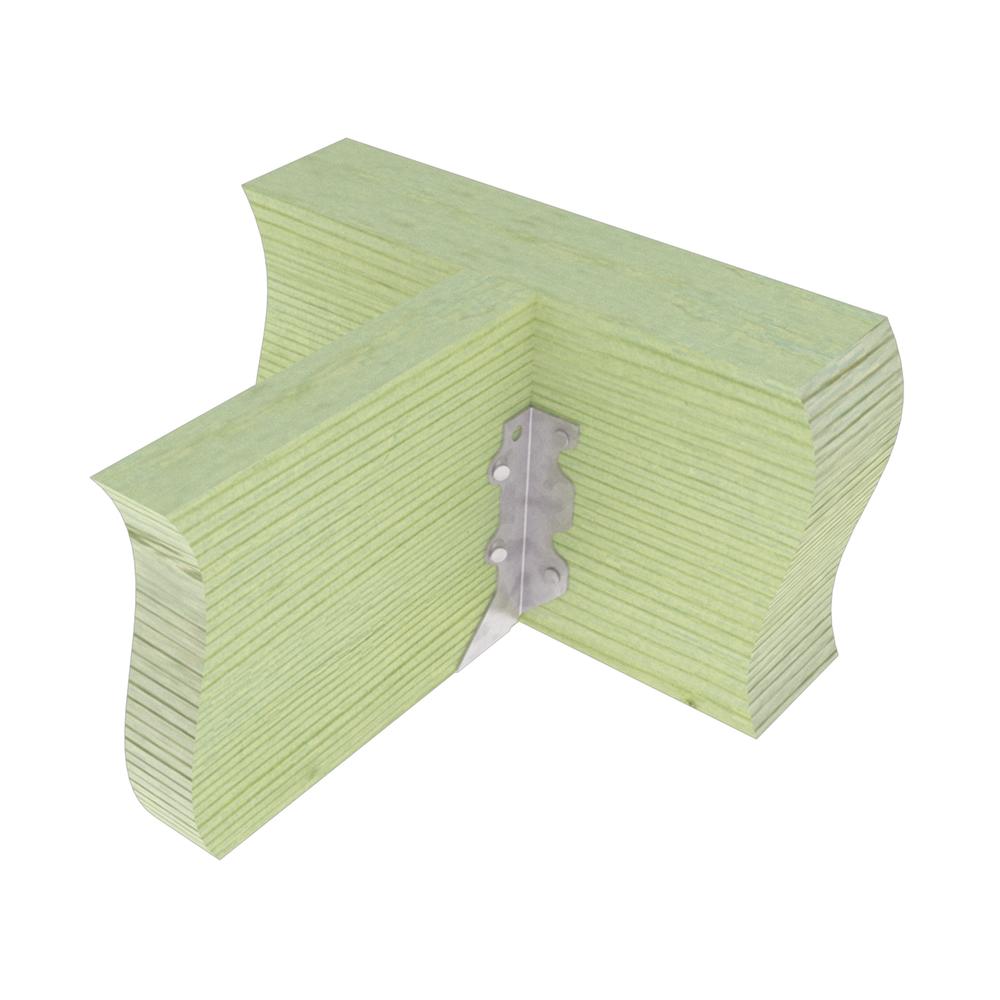

The JUS26-TZ Joist Hanger is a reliable and efficient solution for connecting 2×6 joists to headers. Part of USP’s HUS, JUS, and MUS series, it features a double-shear nailing system that allows for 30° to 45° slant nailing, increasing load capacity while reducing the total number of required nails. The corrosion-resistant triple zinc (TZ) coating ensures long-lasting durability, even in outdoor and moisture-prone environments.

Key Features:

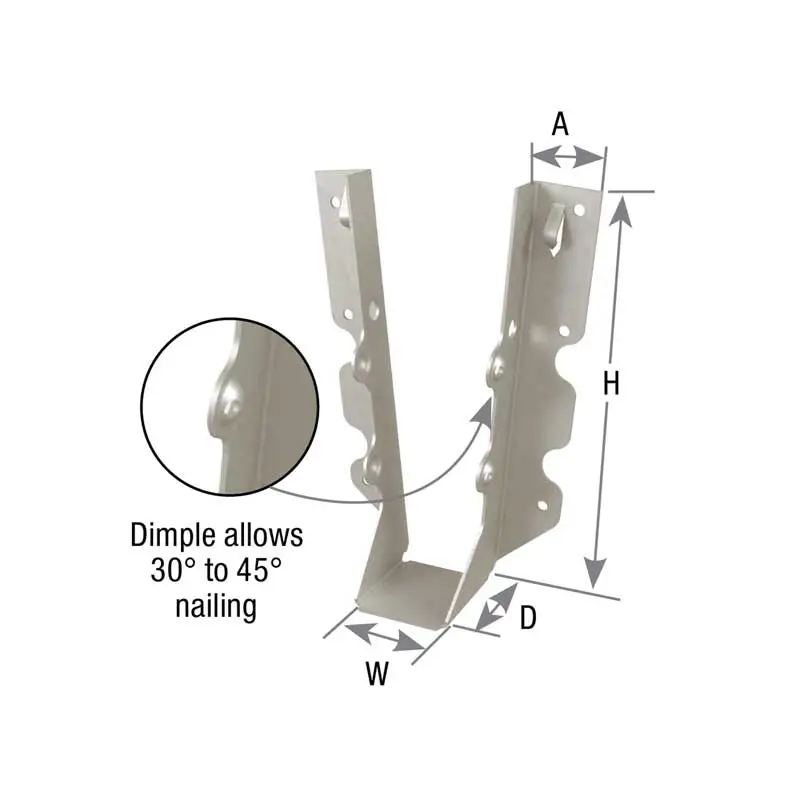

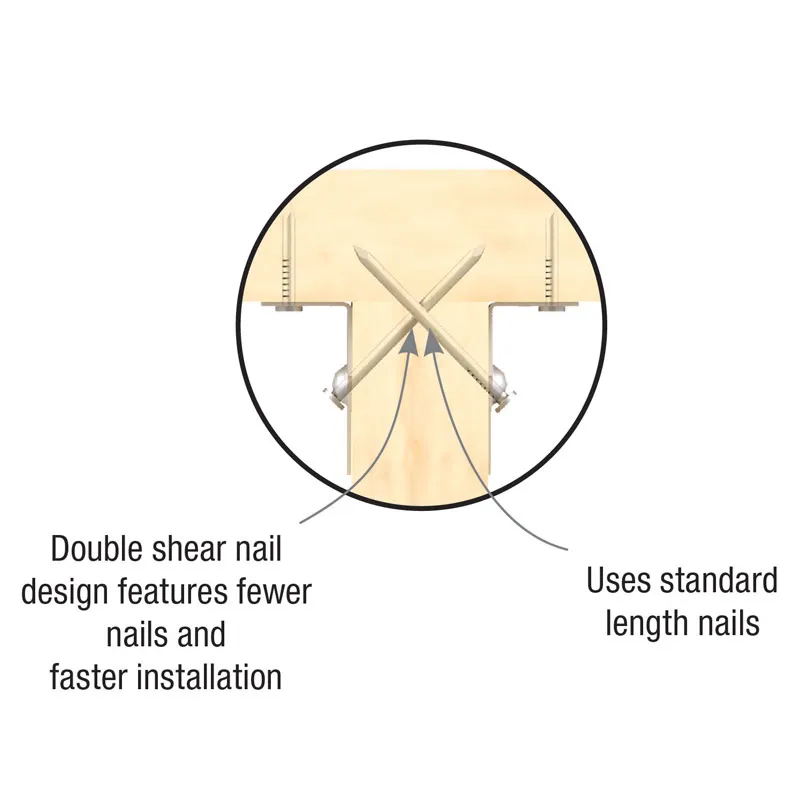

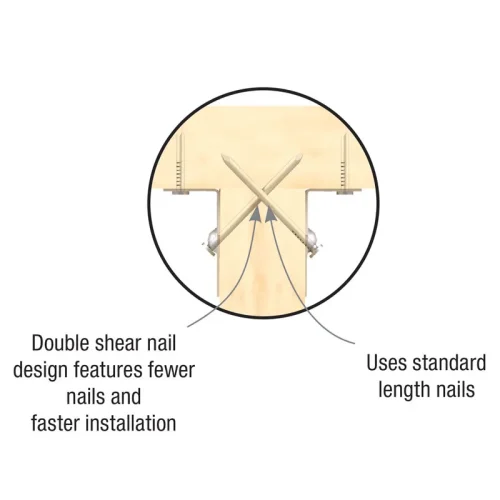

• Double-Shear Nailing – Slant nailing at 30° to 45° increases load capacity and reduces the need for additional nails.
• Versatile Joist Compatibility – Designed to fit 2×6 joists, making it ideal for a wide range of framing applications.
• Heavy-Duty 18-Gauge Steel – Built to provide strong, stable, and secure connections.
• G90 Galvanized Coating – Corrosion-resistant finish protects against moisture, rust, and weather exposure.

Fastening Requirements:

• Header: (6) 10d nails
• Joist: (4) 10d nails

Packaging Details:

• Quantity: 100 JUS26-TZ Joist Hangers per carton
• Reference: USP #LUS26
• Supplier: USP

The JUS26-TZ Joist Hanger offers the perfect blend of strength, efficiency, and corrosion resistance. Its double-shear nailing system boosts load capacity while simplifying the installation process. Sign in to view pricing and place your order today.
