Carton of (100) 20 Ga. Steel Mending Nail Plates

NP15 Nail Plates – Multiple Sizes Available (Carton of 100)

The NP15 Nail Plates offer an easy-to-install solution for non-structural wood-to-wood connections. Ideal for light-duty repairs and reinforcements, these plates provide quick, secure attachment using pre-punched nail holes. Made from 20-gauge steel, these plates are lightweight yet durable. Available in multiple sizes to fit your project needs, they are not intended for structural use or truss assembly.

Available Sizes:

• 1-13/16″ x 5″ (12 nail holes)
• 3-1/8″ x 5″
• 3-1/8″ x 7″

Key Features:

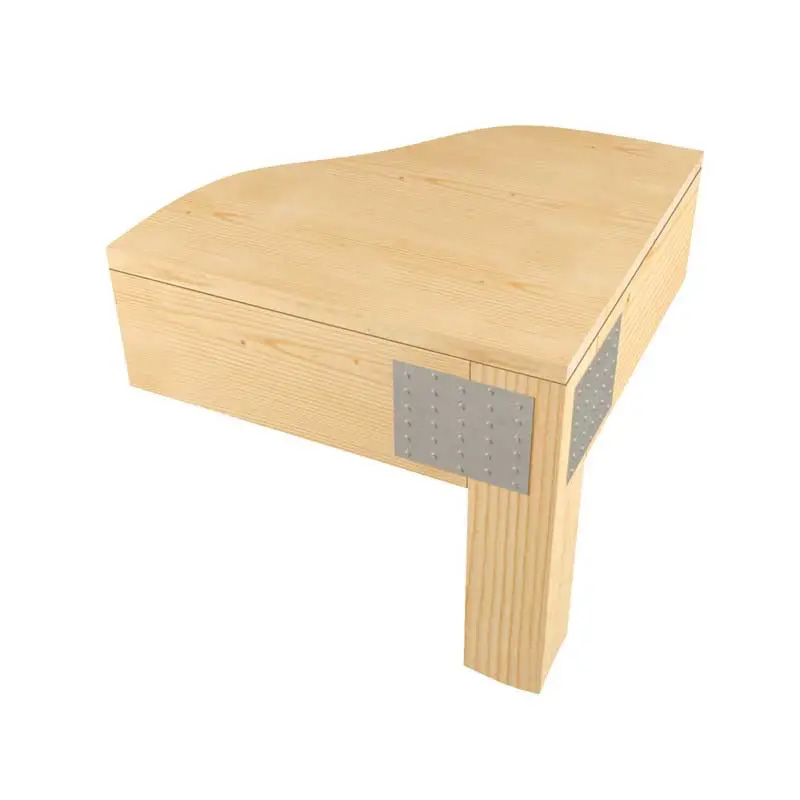

• Non-Structural Mending Plates – Designed for wood-to-wood connections in light-duty repairs and reinforcements.
• Multiple Sizes Available – Choose from several size options to match your project needs.
• 20-Gauge Steel Construction – Offers lightweight durability for non-structural applications.
• Pre-Punched Nail Holes – Makes installation quick and simple with 12 nail holes for secure attachment.
• Not for Truss Assembly – These plates are not rated for structural use or truss assembly applications.

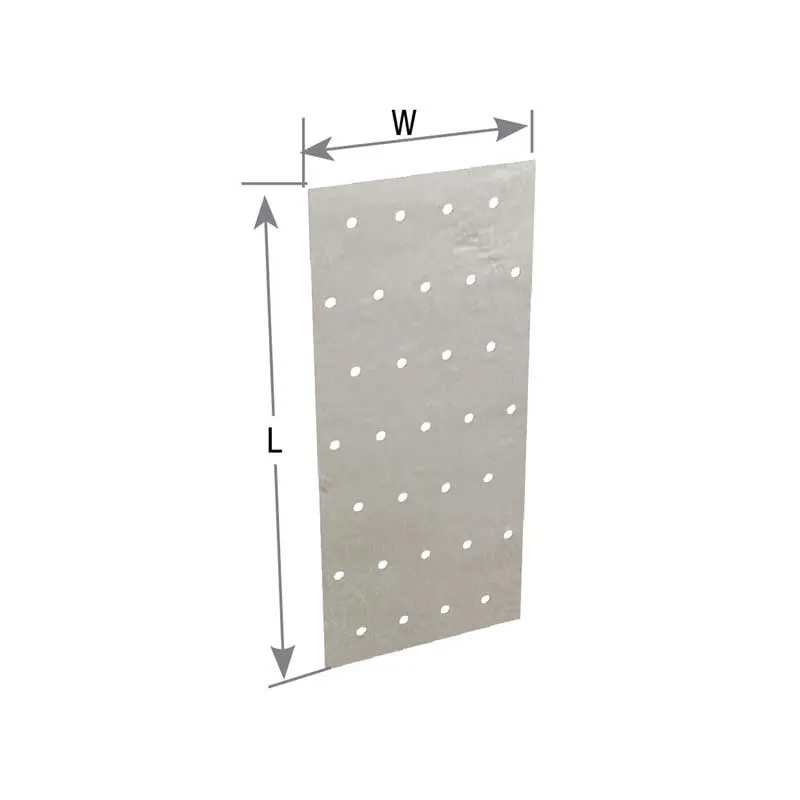

Detailed Dimensions (1-13/16″ x 5″ option):

• Width: 1-13/16″
• Length: 5″
• Number of Nail Holes: 12

Packaging Details:

• Quantity: 100 NP15 Nail Plates per carton
• Reference: USP #TP15
• Supplier: USP

The NP15 Nail Plates provide a simple, fast, and cost-effective method for light-duty wood-to-wood connections. With multiple sizes available and pre-punched nail holes for easy installation, they are a versatile choice for non-structural repairs and reinforcements.
