Carton of (25) 1-9/16 in. x 9-1/4 in. x 1-7/8 in. 16 Ga. Steel Triple Zinc Left Skewed Hangers

SKH210L-TZ Left Skewed Hangers – Carton of 25

The SKH210L-TZ Left Skewed Hanger offers a flexible and durable solution for angled beam-to-joist connections. With its ability to accommodate skews from 40° to 50° without any modifications, it simplifies angled framing projects. Built with heavy-duty materials and a corrosion-resistant finish, it ensures long-lasting strength and reliability in demanding construction environments.

Key Features:

• Adjustable Skew Range – Supports angles from 40° to 50° without requiring hanger adjustments.
• Compatible Beam/Joist Sizes – Fits standard 2×10, 2×12, and 2×14 lumber sizes.
• Heavy-Duty 16-Gauge Steel – Provides exceptional load-bearing capacity for secure connections.
• Triple Zinc Coating (TZ) – Corrosion-resistant finish for added durability in outdoor and moisture-prone environments.
• Left-Skewed Design – Ideal for angled beam-to-joist connections on the left side.

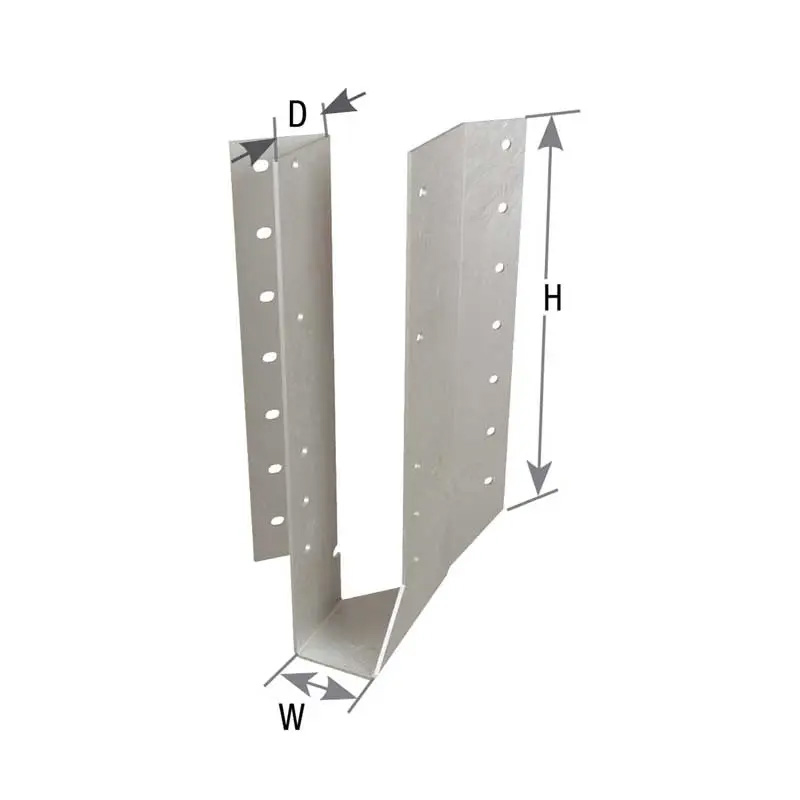

Detailed Dimensions:

• Width: 1-9/16″
• Height: 9-1/4″
• Depth: 1-7/8″

Fastening Requirements:

• Header: (14) 16d nails
• Joist: (10) 10d x 1-1/2″ nails

Load Capacity:

• 1790 DF-L/SP – Supports heavy loads to meet the demands of large framing projects.

Packaging Details:

• Quantity: 25 SKH210L-TZ Left Skewed Hangers per carton
• Reference: USP #SUL210 or SUL214
• Supplier: USP

For strong, versatile, and corrosion-resistant angled connections, the SKH210L-TZ Left Skewed Hanger is a smart choice.
