Carton of (25) 4-5/8 in. x 8-3/8 in. x 2 in. 18 Ga. Steel Triple Zinc Joist Hangers

JUS210-3TZ Triple Joist Hanger – Carton of 25

The JUS210-3TZ Triple Joist Hanger is engineered for heavy-duty support of (3) 2×10, (3) 2×12, or (3) 2×14 joists. This multi-joist connector features USP’s double-shear nailing system, allowing for 30° to 45° slant nailing, which increases load capacity while reducing the number of required nails. Made from durable 18-gauge steel with a triple zinc (TZ) coating, it delivers superior strength and corrosion resistance for demanding indoor, outdoor, and moisture-exposed framing applications.

Key Features:

• Supports Triple Joists – Designed to fit (3) 2×10, (3) 2×12, or (3) 2×14 joists for multi-joist connections.

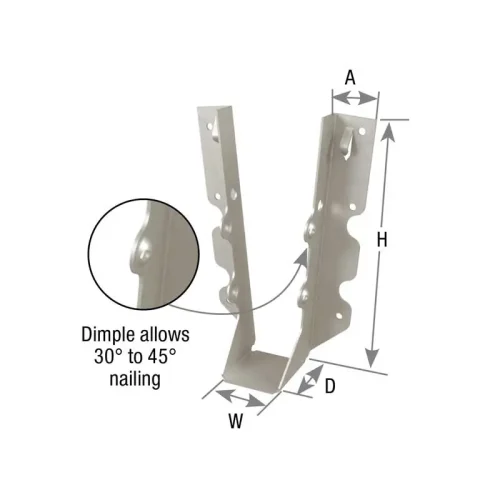

• Double-Shear Nailing – Slant nailing at 30° to 45° increases load capacity and reduces the need for shorter nails.
• Heavy-Duty 18-Gauge Steel – Provides maximum strength, stability, and long-lasting support.
• Triple Zinc Coating (TZ) – Corrosion-resistant finish protects against moisture, rust, and weather exposure.

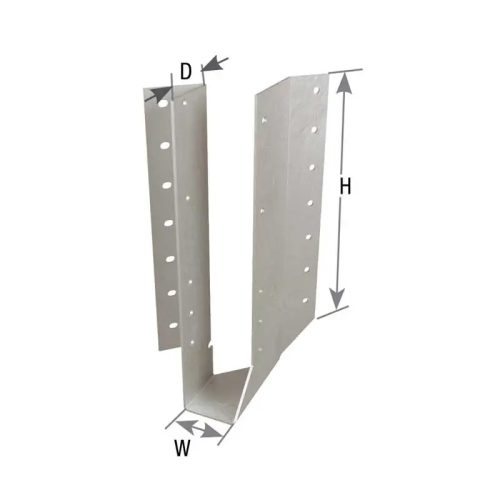

Detailed Dimensions:

• Width: 4-5/8″
• Height: 8-3/8″
• Depth: 2″
• A (Seat Depth): 1″

Fastening Requirements:

• Header: (8) 16d nails
• Joist: (6) 16d nails

Load Capacity:

• 1800 DF-L/SP – Engineered to support heavy-duty load requirements for large, multi-joist framing projects.

Packaging Details:

• Quantity: 25 JUS210-3TZ Triple Joist Hangers per carton
• Reference: USP #LUS210-3
• Supplier: USP

The JUS210-3TZ Triple Joist Hanger provides unmatched strength, stability, and corrosion resistance for heavy-duty triple-joist connections. Its innovative slant nailing system ensures faster installation and stronger connections.
