Carton of (25) 5-1/2 in. x 3 in. x 5-3/8 in. D Series Triple Zinc Post Anchors

D66-TZ Post Anchors – D Series Triple Zinc (Carton of 25)

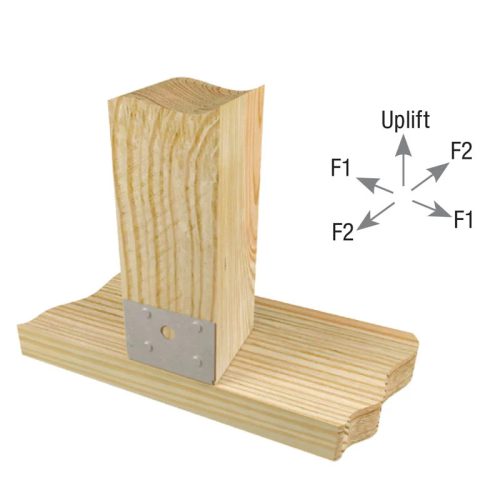

The D66-TZ Post Anchors from USP provide a light-duty solution for securing nominal-sized 6×6 posts to wood surfaces. Perfect for intermediate posts in rail systems, they offer limited lateral and uplift resistance and should not be used as the primary anchorage for posts in railings.

Key Features:

• Light-Duty Application: Ideal for intermediate posts in rail systems where corner or end posts are fully anchored.

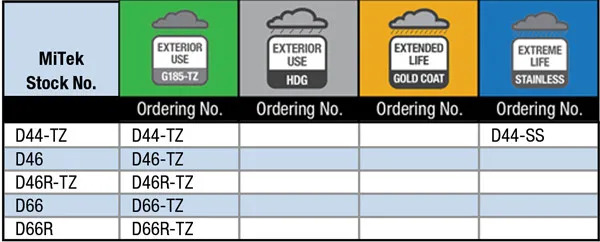

• Triple Zinc Coating: G90 galvanizing enhances corrosion resistance for dependable performance.
• Precise Fit: Designed specifically for 6×6 post applications.

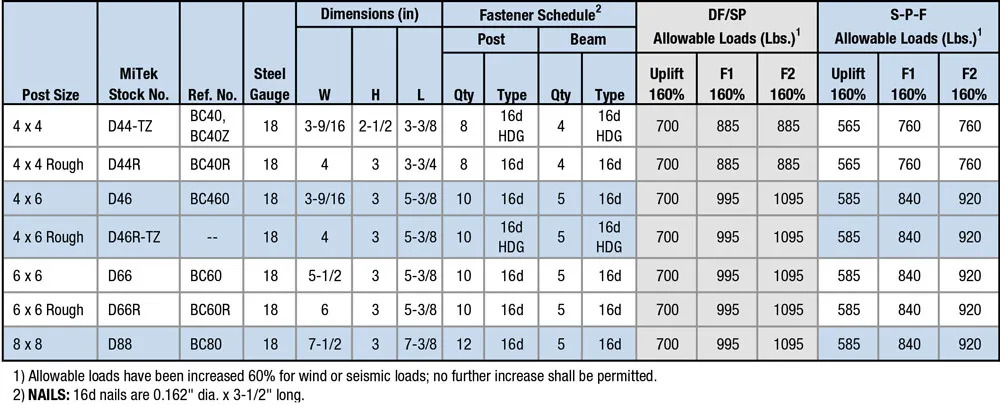

Specifications:

• Post Size Compatibility: 6×6

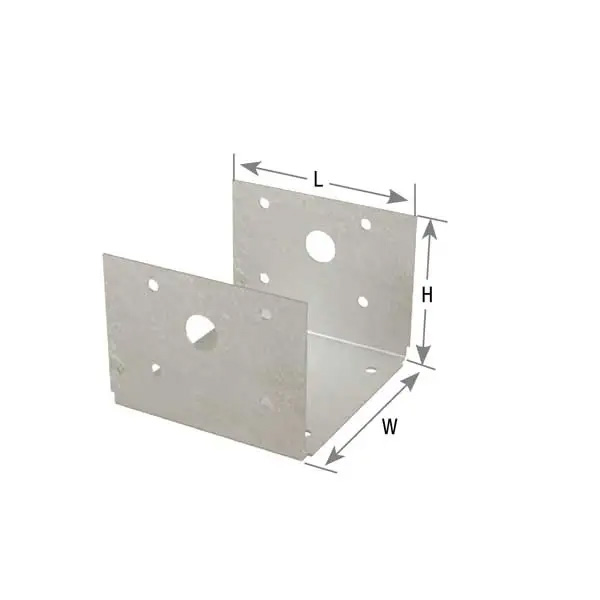

• Dimensions: 5-1/2″ W x 3″ H x 5-3/8″ L
• Nail Schedule:
  • Post: 10 x 16d nails
  • Beam: 5 x 16d nails
• Allowable Load: 1,020 DF-L / SP

Each carton includes 25 D66-TZ Post Anchors (USP #BC60).

A practical choice for light-duty applications, the D66-TZ anchors combine functionality with reliable corrosion resistance, ensuring stable support in appropriate settings.
