Carton of (50) 1-9/16 in. x 6-5/8 in. x 1-3/4 in. 18 Ga. Steel Triple Zinc Joist Hangers

JUS28-TZ Joist Hanger – Carton of 50

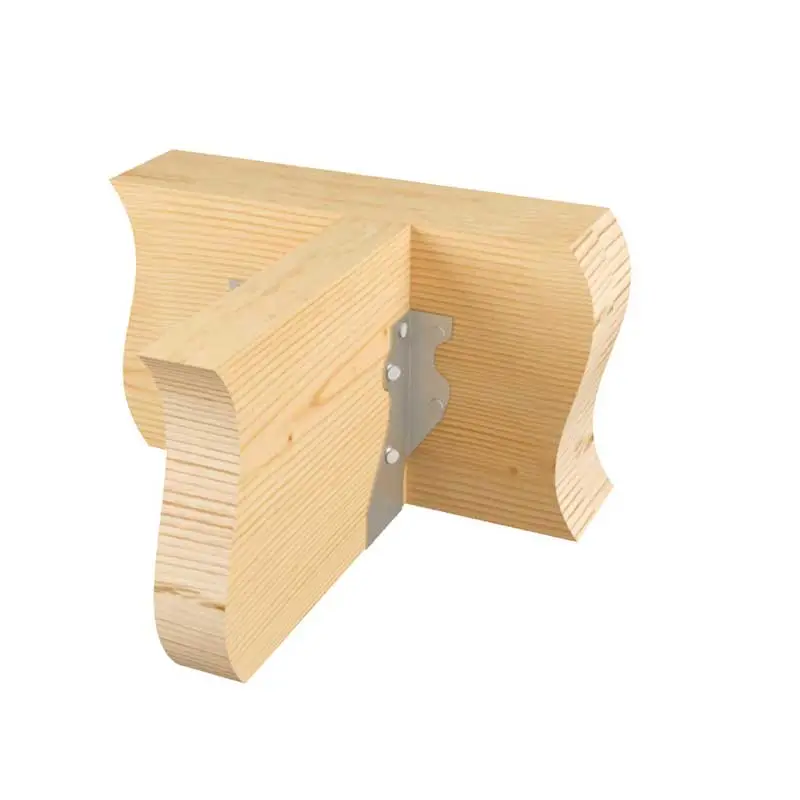

The JUS28-TZ Joist Hanger is a versatile, high-performance solution for connecting 2×8 and 2×10 joists to headers. Part of USP’s HUS, JUS, and MUS series, this hanger features innovative double-shear nailing for increased load capacity with fewer nails. The dimple design allows for slant nailing at 30° to 45°, providing stronger connections and eliminating the need for shorter joist nails in 2x applications.

Key Features:

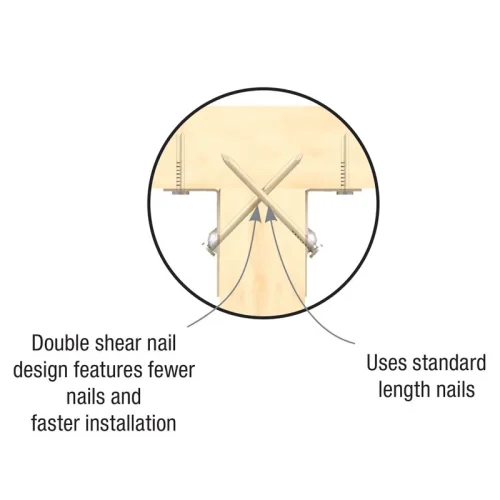

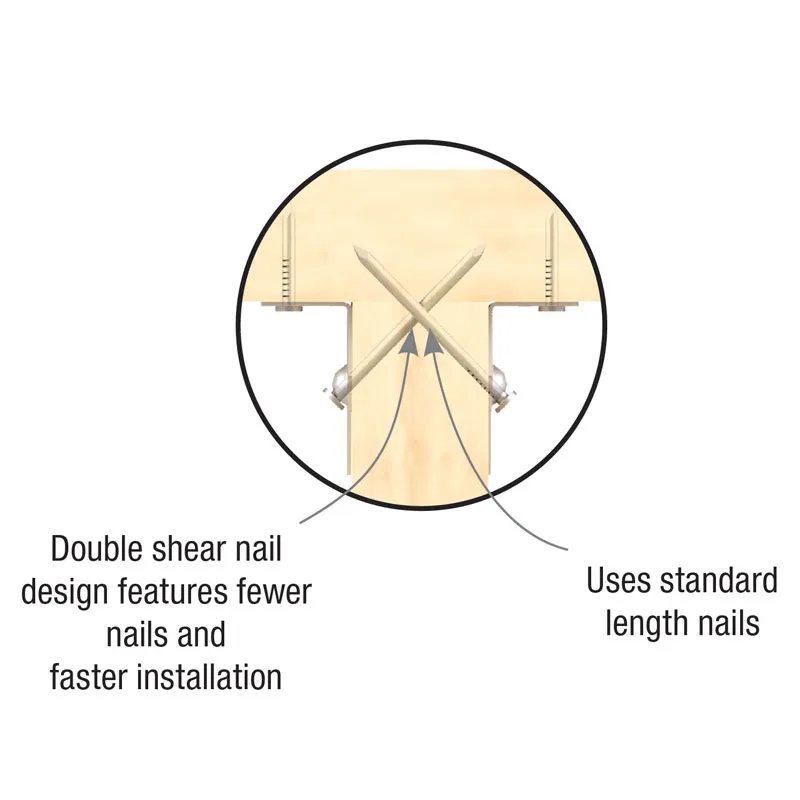

• Double-Shear Nailing – Allows for 30° to 45° slant nailing, resulting in higher load capacity and fewer required nails.
• Compatible Joist Sizes – Fits 2×8 and 2×10 joists, offering versatility for a range of framing projects.
• Heavy-Duty 18-Gauge Steel – Provides strength, stability, and long-lasting support.
• Triple Zinc Coating (TZ) – Corrosion-resistant finish for protection in outdoor and moisture-prone environments.

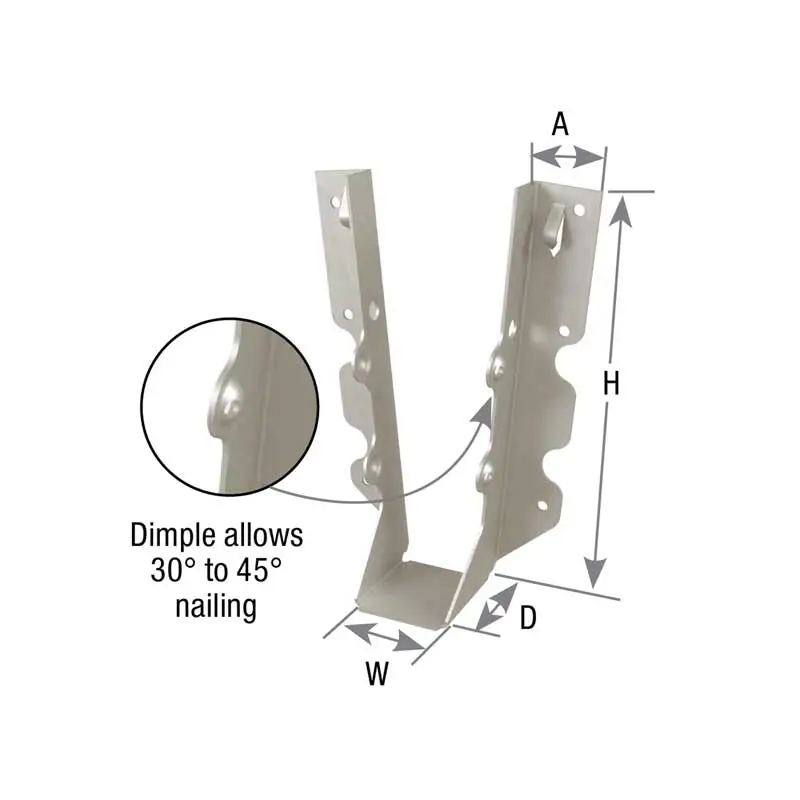

Detailed Dimensions:

• Width: 1-9/16″
• Height: 6-5/8″
• Depth: 1-3/4″
• A (Seat Depth): 1″

Fastening Requirements:

• Header: (6) 10d nails
• Joist: (4) 10d nails

Load Capacity:

• 1075 DF-L/SP – Engineered for high-capacity load support.

Packaging Details:

• Quantity: 50 JUS28-TZ Joist Hangers per carton
• Reference: USP #LUS28
• Supplier: USP

For strong, efficient joist-to-header connections, the JUS28-TZ Joist Hanger is an industry-standard choice. With its slant nailing design, corrosion resistance, and high load capacity, it’s perfect for residential, commercial, and outdoor framing projects.
