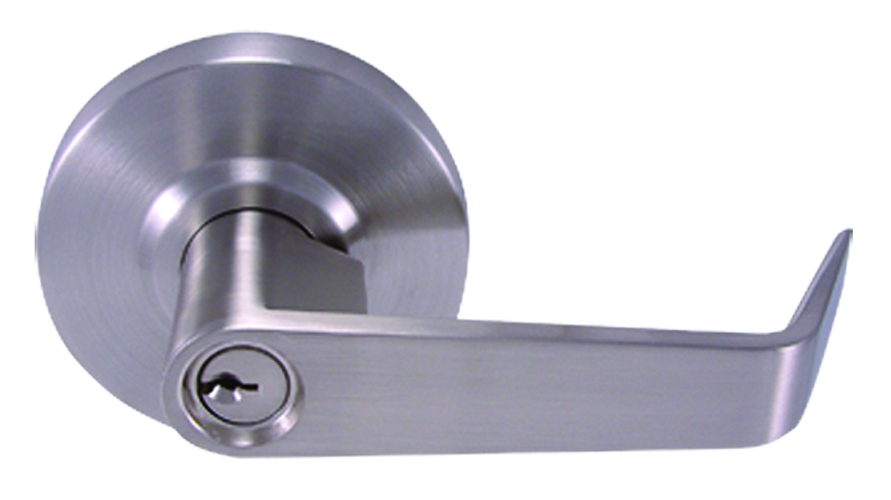

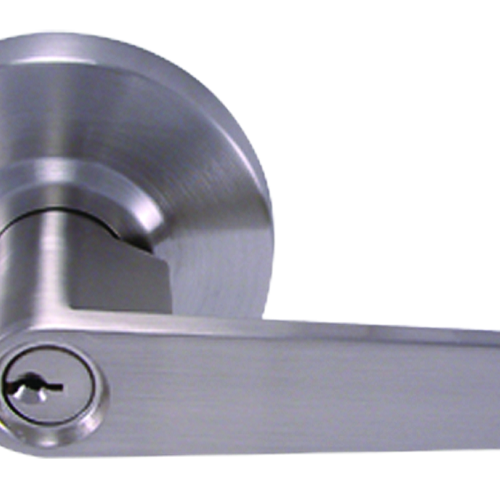

Design Hardware US26D KIL-Exit Device Lever Trim

The Design Hardware US26D KIL-Exit Device Lever Trim is a heavy-duty, high-security trim designed for use with exit devices in commercial and institutional applications. Built for durability, accessibility, and vandal resistance, this lever trim meets Grade 1 and Grade 2 ANSI standards, ensuring long-term reliability in high-traffic environments.

Key Features

• ANSI Grade 1 & 2 Certified – Meets and exceeds ANSI A156.2, Series 4000 standards
• UL Listed – Rated for “A” Label 3-hour fire doors
• ADA Compliant – Meets ADA & ANSI A117.1 accessibility codes
• Clutching Mechanism – Protects against forced entry and vandalism
• Anti-Sag Mechanism – Independent lever return springs prevent sagging
• Non-Handed Design – Fully reversible for left- or right-handed doors

Technical Specifications

• Trim Construction:
  • 5-inch solid zinc diecast lever
  • 3-3/8-inch wrought brass rose
• Backset & Latchface:
  • Standard: 2-3/4-inch backset, 1-1/8-inch x 2-1/4-inch latchface
  • Optional: 2-3/8-inch backset, 1-inch x 2-1/4-inch latchface
  • Self-adjusting front for square or beveled edge doors
• Latchbolt:
  • Stainless steel with 1/2-inch projection
  • Deadlocking on keyed functions and exit latch
• Cylinder:
  • 6-pin solid brass, C keyway, with two keys (standard)
  • Optional: Prepared for small format interchangeable core (less core)
  • Replacement cylinders supplied loose (not pre-installed)
• Strike Options:
  • Standard: 4-7/8-inch x 1-1/4-inch ASA
  • Optional: T strike and full lip strike available upon request
• Door Prep: ANSI A115.2 – 2-1/8-inch crossbore with (2) 3/8-inch thru-bolt holes
• Door Thickness:
  • Factory set for 1-3/4-inch doors
  • Adjustable up to 2-inch thick doors (1-3/8-inch doors require shims)
• Thru-Bolts:
  • Grade 1 requires thru-bolts
  • Grade 2 can be installed with or without thru-bolts

Available Lever Styles and Finishes

• Lever Styles:
  • Flat (standard), Curved, Half Curved, S-A, S-B
• Finishes:
  • Standard: US26D (Satin Chrome)
  • Special Order: US3 PVD, US4, US10B, US15, US26 PVD (PVD = Lifetime Finish)

Additional Features

• Combination Screws – Compatible with wood or metal doors and frames
• Vandal-Resistant Design – Clutching mechanism prevents forced entry
• Limited Lifetime Warranty – Ensures long-term durability

Applications

• Commercial buildings – Offices, schools, hospitals, and retail spaces
• Institutional settings – Government, healthcare, and public facilities
• Emergency exit doors requiring high-security lever trim

The Design Hardware US26D KIL-Exit Device Lever Trim is built to provide strong security, reliable performance, and vandal resistance for commercial and institutional applications.
