2000R 33 in. Aluminum Exit Rim

2000R AL 33″ RIM DEVICE (6 PER CASE) EACH – NOT CASES!

• Meets ANSI A156.3 – Grade 1 Standards
• UL Listed for Panic Exit Hardware
• Meets ADA requirements ANSI A117.1 with Lever Trim
• Non Handed – Completely Reversible
• Roll Formed Steel or Stainless Steel Channel & Steel Chassis
• Steel or Stainless Steel Headcover & End Cap

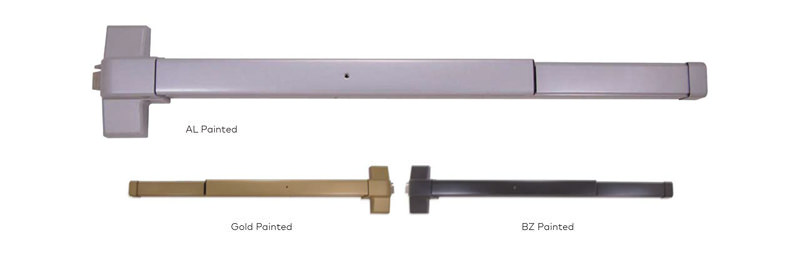

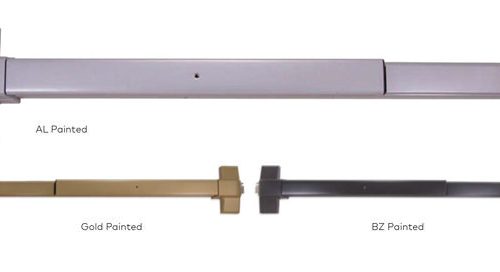

• Finishes: Aluminum, Dark Bronze, Gold Painted & US32D
• Deadlocking latchbolt with 5/8″ projection
• Roller Strike with 5/8″ projection with 1/8″ shim
• 5/32″ Hex Key Dogging Standard on Panic Exit Hardware
• Device Lengths: 33″ for 3′-0″ wide doors and 42″ for 3-8″ to 4′-0″ wide doors
• Min. Door Width: 33″ & 42″ devices can be cut down to fit on 2-4″ wide door
• Center Case Dim.: 6″ Height x 2 5/16″ Wide x 2 1/2″ Thick – 4″ Minimum stile required
• Mechanism Case Dim.: 1 5/8″ Height x 1 13/16″ Wide
• Projection: 2 1/2″ Undogged – Push bar Neutral & 1 13/16″ Dogged – Push bar Depressed
• Fasteners: Wood, Machine & Self Tapping Machine Screws (F2000R includes thru bolts)
• Trim & Accessories: ASA & latch filler included, Exterior Trims, Shim Kits other accessories available
• Limited Lifetime Warranty
